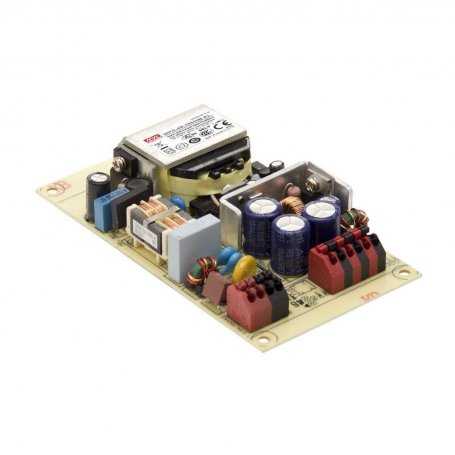

IDPC-45-350  IDPC-45-350 Alimentatore MeanWell - CC - 45W / 350mA  Mean Well  Alimentatori LED
zoom_out_map
chevron_left chevron_right

L'immagine prodotto potrebbe leggermente differire in quanto rappresentativa della famiglia e non del modello.

Non disponibile - contattaci

IDPC-45-350 Alimentatore MeanWell - CC - 45W 350mA

18,69 € Tasse escluse

18,69 € Tasse escluse

block Non disponibile - contattaci

We will send you an email once the product becomes available. your email address will not be shared with anyone else.

Quantità Prezzo unitario Prezzo totale Compralo
1 18,69 € 18,69 €
5 18,32 € 91,58 €
10 17,94 € 179,42 €
20 17,57 € 351,37 €
Descrizione

Prodotto End-Of-Life, sostituito da PLP-60

  • Alimentatore MeanWell
  • Corrente Costante CC
  • Potenza: 45W
  • Ingresso: 90~295VAC
  • Tensione Uscita CC: 57~95Vdc
  • Corrente Uscita: 350mA
  • Dimming 2 in 1 (0~10Vdc & 10V PWM)
  • Alimentatore MeanWell
  • Corrente Costante CC
  • Potenza: 45W
  • Ingresso: 90~295VAC
  • Tensione Uscita CC: 57~95Vdc
  • Corrente Uscita: 350mA
  • Dimming 2 in 1 (0~10Vdc & 10V PWM)

  • Dimensione: 120 x 66,5 x 25 mm
  • Open Frame
  • PFC attivo incorporato
  • Garanzia: 3 anni
Scheda tecnica
Mean Well
IDPC-45-350
Nuovo
7438645886216
Led Dimming
0/10V
PWM
Tipo Regolazione Uscita
Corrente Costante / CC
Tensione Ingresso VAC
90~295VAC
90~295VAC
Potenza W
45
PFC
Grado Protezione IP
IP20
Garanzia
3 Anni
Formato Meccanico di Montaggio
Open Frame
Efficienza
86%
Dimensioni
120 x 66,5 x 25 mm
Corrente Uscita mA
350
Corrente Uscita A
0.35
Classe Isolamento
Classe 2
Certificazioni
CE
Applicazioni
Alimentazione LED
Tensione Ingresso VAC (Nominale)
110
220
Famiglia Prodotto
IDPC
LTT
SU RICHIESTA
MKP
NO
TK-CODE
0/0. [0.0.NO.]/LTT-SU RICHIESTA
Prezzo listino
25.1
