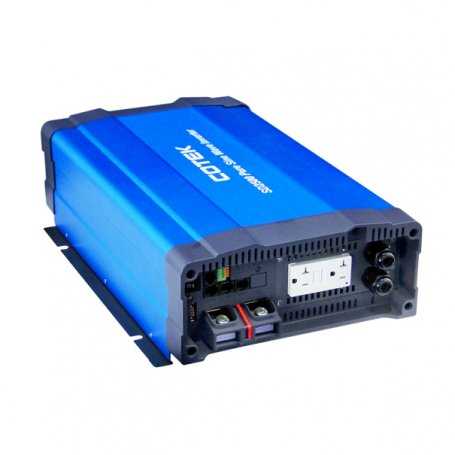

The product image may slightly differ as it is representative of the family and not the model.

Non disponibile - contattaci

SD-2500-224 Cotek Inverter 2500W In 24V Out 220 VAC Pure Sine Wave Transfer Switch STS

€1,067.08 Tax excluded

€1,067.08 Tax excluded

block Non disponibile - contattaci

We will send you an email once the product becomes available. your email address will not be shared with anyone else.

Quantity Unit price Total price Buy
1 €1,067.08 €1,067.08
5 €1,045.74 €5,228.69
10 €1,024.40 €10,243.97
20 €1,003.06 €20,061.10
Description
  • INVERTER COTEK
  • Power: 2500W
  • Pure Sine Wave THD<3%
  • Input Voltage: 24VDC
  • Output Voltage: 220VAC (50/60Hz)
  • Dimensions: 283 x 128 x 436 mm

Features:

  • Pure Sine Wave
  • Selectable Output Voltage and Frequency
  • Optional STS Module - Transfer time less than 4ms
  • RS-232 Interface
  • Selectable Output Voltage and Energy Saving Mode via DIP switch or remote control
  • 1Ф3W / 3Ф4W for multiple industrial applications
  • Thermally Controlled Fan
  • Built-in AC Switch and Switch
  • Fully Isolated Input and Output Connections
  • Selectable Output Frequency 50 / 60Hz via DIP switch
  • Selectable Output Voltage and Energy Saving Mode
  • Input Protections: Polarity Reversal (Fuse) / Undervoltage / Overvoltage
  • Output Protections: Short Circuit / Overheating / Overload / Overvoltage
  • Certifications: E13 / CE / UL / FCC
Attachments
Data sheet
SD-2500-224
9
7438645965713
Input VDC (Nominal)
24
Output Voltage VAC
220 VAC
Input Voltage VDC (Range)
Input Voltage Volt
24
Operating Temperature
-4°F / +140°F
Power W
2500
PFC
No
Net Weight
Parallelizable
Comparable
Sinusoidal Waveform
Pure Sinusoidal Wave
Output Voltage Nr.
1
Warranty
2 Years
Mechanical Mounting Format
Boxed - Frame Assembly
Efficiency
88%
Dimensions
Input Connector
Cable/Plug
Output Connection
Isolation Class
Isolated
Certifications
Bypass Switch
Interruttore di Trasferimento
Applications
Industrial Automation
LTT is an abbreviation or acronym that may not have a direct translation without context. It may stand for a company name, a tec
9
MKP
NO
TK-CODE
4/0. [0.0.NO.16]/LTT-9
List Price
1316.7
