IDPC-45A-500  IDPC-45A-500 Alimentatore MeanWell - CC - 45W / 500mA  Mean Well  Alimentatori LED
zoom_out_map
chevron_left chevron_right

L'image du produit pourrait légèrement différer car elle est représentative de la famille et non du modèle.

Non disponibile - contattaci

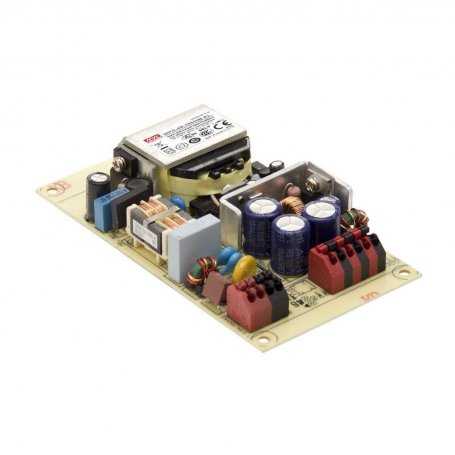

IDPC-45A-500 Alimentation MeanWell - CC - 45W 500mA

19,53 € HT

19,53 € HT

block Non disponibile - contattaci

We will send you an email once the product becomes available. your email address will not be shared with anyone else.

Quantité Unit price Total price Buy
1 19,53 € 19,53 €
5 19,14 € 95,70 €
10 18,75 € 187,49 €
20 18,36 € 367,16 €
Description

Produit End-Of-Life, remplacé par PLP-60

  • Alimentation MeanWell
  • Courant Constant CC
  • Puissance: 45W
  • Entrée: 90~295VAC
  • Tension de sortie CC: 54~90Vdc
  • Courant de Sortie: 500mA
  • Gradation 2 en 1 (0~10Vdc & 10V PWM)
  • Sortie Auxiliaire: 12Vdc 50mA
  • Alimentation MeanWell
  • Courant Constant CC
  • Puissance: 45W
  • Entrée: 90~295VAC
  • Tension de Sortie CC: 54~90Vdc
  • Courant de Sortie: 500mA
  • Gradation 2 en 1 (0~10Vdc & 10V PWM)
  • Sortie Auxiliaire: 12Vdc 50mA

  • Dimension: 120 x 66,5 x 25 mm
  • Cadre Ouvert
  • PFC actif incorporé
  • Garantie: 3 ans
Fiche technique
Mean Well
IDPC-45A-500
Neuf
7438645886308
Variation de l'éclairage LED
0/10V
PWM
Type de Réglage de Sortie
Courant Constant / CC
Tension d'entrée VAC
90~295VAC
90~295VAC
Puissance W
45
PFC
Oui
Degré de Protection IP
IP20
Garantie
3 Ans
Format Mécanique d'Assemblage
Open Frame
Efficacité
85%
Dimensions
120 x 66,5 x 25 mm
Courant de sortie mA
500
Courant de Sortie A
0.5
Classe d'Isolation
Classe 2
Certifications
CE
Applications
Alimentation LED
Tension d'entrée VAC (nominale)
110
220
Famille de Produits
IDPC
LTT
SU RICHIESTA
MKP
NO
TK-CODE
0/0. [0.0.NO.]/LTT-SU RICHIESTA
Prix catalogue
26.3
