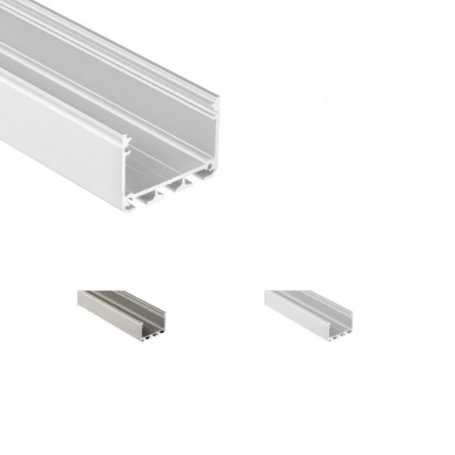

LED Aluminum Profile Flat Lighting Work Area 43 x 30 mm - Model ILEDZ
zoom_out_map
chevron_left chevron_right

The product image may slightly differ as it is representative of the family and not the model.

Non disponibile - contattaci

LED Aluminum Profile Flat Lighting Work Area 43 x 30 mm - Model ILEDZ

We will send you an email once the product becomes available. your email address will not be shared with anyone else.

PRICE ON REQUEST - CONTACT US

  • Extruded aluminum profile, "Type ILEDZ".
  • Standard length 2m, available up to 6m on request.
  • Possibility of custom cutting.
  • We recommend its use to dissipate the heat produced by the LEDs and maximize their lifespan.

Available profile colors

Bianco laccato Argento anodizzato

Lacquered White

Anodized Black

Anodized Silver

Description

Aluminum LED Flat Profile - STANDARD 43 x 30 mm - Model ILEDZ

  • Model ILEDZ
  • Size: 43 x 30 mm
  • LED Strips up to 40W/m

Aluminum Profile, "Type ILEDZ", series Luminos.
Ideal for lighting under-cabinet in the kitchen, shelving, and displays. It can also be used as an aluminum profile inserted into the flush milling of furniture to create light effects.

We recommend its use to dissipate the heat produced by the LEDs and maximize their lifespan.



Available covers

Cover trasparente Cover frozen Cover milky

Transparent (PMMA/PC)

WIDE

Frozen (PMMA/PC)

WIDE

Milky (PMMA/PC)

WIDE

Black (PRISMATIC PC)

WIDE

With 15° lens (RASTER WIDE)

WIDE

Caps - available in aluminum or plastic, with or without hole

White Black Silver

Accessories

Straight connector 90° connector Cross connector 120° connector Mounting spring



Additional accessories are also available for all profiles, both for suspension and for turning on and dimming the locally emitted light.




Assembly instructions for ILEDZ profile with WIDE diffuser using the mounting screw.
Final effect of mounting the ILEDZ profile with WIDE diffuser using the mounting screw.

Connecting the ILEDZ profiles on the vertical plane at a 90-degree angle.
Connecting the ILEDZ profiles on the horizontal plane at a 90-degree angle.

Possibility to cover the power supply in the ILEDZ profile using the MODI mounting profile.

Assembly diagram of the lighting system elements using the ILEDZ profile and (1) the WIDE diffuser, (2) the LED strips, (3) the holeless cap, (3a) the cap with hole, and (4) the mounting screw, (5) the cap fixing screws.


















Data sheet
770.PAL.ILEDZ
New
Bar Length
200cm
300 cm
600 cm
Profile Type
Flat Profile
Profile Color
Anodized Black
Anodized Silver
Lacquered White
Suspension
Yes
