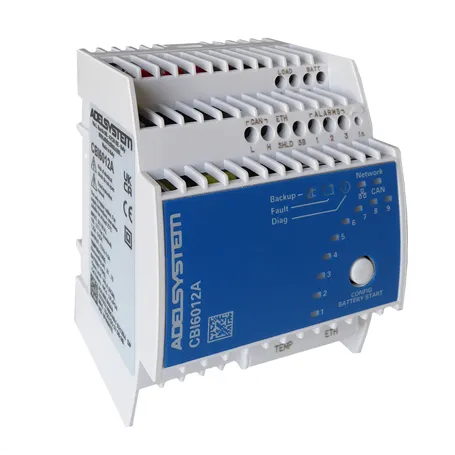

The product image may slightly differ as it is representative of the family and not the model.
CBI6012A DC UPS Battery Charger System Adelsystem 12V 5A
Features:
- Input: Single-phase 115 – 230 - 277 Vac
- Selectable Load Output: 12Vdc 5A
- Battery Charging Output: 12 Vdc 5A
- Suitable for the following types of batteries: Open Lead, Sealed Lead, Lead Gel, Ni-Cd, Li-Ion
- Automatic battery status diagnostics, Battery life test function (Battery internal impedance)
- IUoU charging curve, constant voltage and current
- Four charging levels: Boost, Bulk, Trickle, Recovery
- Protected against short circuit and reverse polarity
- Signal output: for battery failure, Network or Emergency Power
- Ethernet: SNMP V3, Modbus TCP/IP, HTTPS
- DIN rail and wall mounting
Power managementThanks to the All In One units (DC-UPS), it will be possible to optimize power management. The available power is automatically allocated between the load and the battery, providing energy to the load as the unit's absolute priority. Therefore, it is not necessary to duplicate the power, as even the power directed to the battery will be supplied to the load if required. The maximum current available on the load output is 3 times the nominal current value of the device.
Battery care: It is a concept based on algorithms that implement fast and automatic charging, four states of charge, optimization of battery charge over time, recovery of discharged batteries, and real-time diagnosis during installation and operation. The real-time self-diagnosis system, by monitoring battery failures such as battery sulfation, short-circuited elements, accidental connection to reverse polarity, battery disconnection, can be easily detected and removed by the flashing code of the diagnostic led; Continuous monitoring of battery efficiency reduces the risk of battery damage and allows safe operation in permanent connection. Each device is suitable for all types of batteries, through jumpers it is possible to set predefined curves for open lead acid, sealed lead acid, gel, Ni-Cd (optional). They are programmed for two levels of charge, boost and trickle, but can be changed to a single level of charge by the user. A robust casing for DIN rail mounting, IP20 degree of protection. They are extremely compact and economical.
InterconnectionsThe communication of the platform for ADELSYSTEM devices allows the connection of all components in a simple but very powerful way, through Ethernet. A communication protocol based on MODbus TCP/IP or SNMP technology. It is possible to select either of the two buses depending on the application. It allows communication with all accessories provided by ADELSYSTEM and to develop an independent system for electrical continuity. At the same time, it allows monitoring and controlling all parameters in the system, even from another part of the world, through cloud application tools. ADELSYSTEM allows the implementation of a very simple but sophisticated monitoring and control for your energy system and opens up the mind to new ways of dealing with your applications.
Rules and certificationsThe CE mark in compliance with EMC Directive 2014/30/EU: Directive on electromagnetic compatibility; 2014/35/EU: Directive on low voltage; ROHS 2011/65/EU: Restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS), as amended by 2015/863/EU. EMC Immunity: EN61000-6-2; EMC Emission: EN61000-6-3. According to: Electrical equipment for machines EN 60204; Electrical safety (of equipment for information technology) IEC/EN EN62368-1.
Our vote:
- Reliability
- Price
- Characteristics
-
- [[voto1]You haven't provided any Italian text to translate. Please provide the text you want to be translated into English.
- [[voto2]You haven't provided any Italian text to translate. Please provide the text you want to be translated into English.
- [[voto3]You haven't provided any Italian text to translate. Please provide the text you want to be translated into English.
Main technical specifications
|
MODEL |
CBI6012A |
|---|---|
|
Nominal Input Voltage Vac |
115 - 230 - 277 |
|
Voltage range Vac |
90 - 305 |
|
Nominal Battery Voltage / Nominal Current |
12 Vdc / 5A |
|
Efficiency |
90% |
|
Protections |
Short circuit, OLP (Over Load Protection), OVP (Over Voltage Protection), OTP (Over Temperature Protection) |
|
Certifications |
The CE mark in compliance with EMC Directive 2014/30/EU: Directive on electromagnetic compatibility; 2014/35/EU: Low Voltage Directive; ROHS 2011/65/EU: Restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS), as amended by 2015/863/EU. EMC Immunity: EN61000-6-2; EMC Emission: EN61000-6-3. According to: Electrical equipment for machines EN 60204; Electrical safety (of equipment for information technology) IEC/EN EN62368-1. |
|
Working temperature |
-13°F - 158°F |
|
Cooling |
Car cooling |
|
Tension in isolation |
3000 Vac |
|
Dimensions |
70x91x57 mm |
|
Weight |
0.4 Kg |
|
For purchases and sampling |
- Current Protection Type
- Constant Current
- Charger Type
- Advanced Battery Charger
- Output Voltage VDC
- 12
- Input Voltage VAC
- 110~277VAC
- Fault Signaling Type
- Relay
- Charge Current Regulation
- Adjustable
- Rating
- 444
- Power W
- 60
- PFC
- No
- Output Voltage Nr.
- 1
- Input/Output Isolation
- 3000V
- Battery Failure
- Battery Failure Alarm
- IP Protection Grade
- IP20
- Warranty
- 1 Year
- Mechanical Mounting Format
- Din Rail
- Efficiency
- 90%
- Output Current mA
- 5000
- Output Current A
- 5
- Input Connector
- At Speed
- Output Connection
- At Speed
- Isolation Class
- Class 1
- Certifications
- This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details.
- Special Features
- Battery Diagnostics, Multistage Charging, Fault Relay
- Applications
- Fire & Gas Protection
Security - Battery Voltage (Nominal) VDC
- 12
- Input Voltage VAC (Nominal)
- 110
220 - Product Family
- CBI
- LTT is an abbreviation or acronym that may not have a direct translation without context. It may stand for a company name, a tec
- 1
