The product image may slightly differ as it is representative of the family and not the model.

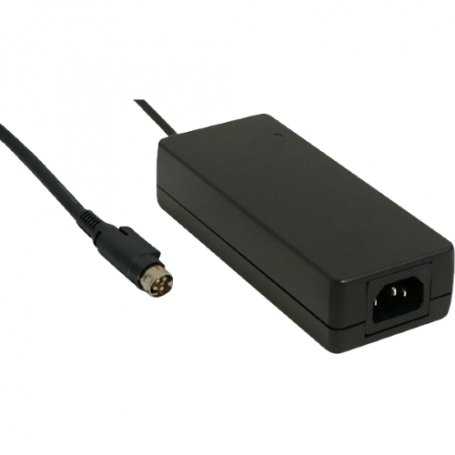

GC120A12-R7B- Meanwell - Battery Charger 120W 12V 7.5A
Description
- MeanWell Desktop Power Supply / Mod. GC120A12-R7B
- Power 120W / 13.6V / 7.5A
- Three-pole input
- Constant Voltage / CV
- Vin 85~264VAC
- MeanWell Desktop Power Supply / Mod. GC120A12-R7B
- Power 120W / 13.6V / 7.5A
- Three-pole input
- Constant Voltage / CV
- Vin 85~264VAC
Data sheet
- Output Regulation Type
- Constant Voltage / CV
- Charger Type
- Simple Battery Charger
- Output Voltage VDC
- 14
- Input Voltage VAC
- 85~264VAC
85~264VAC - Operating Temperature
- -30°C / +70°C
- Power W
- 120
- PFC
- Yes
- Net Weight
- 0.62 kg
- Output Voltage Nr.
- 1
- Input/Output Isolation
- 500V
- IP Protection Grade
- IP20
- Warranty
- 2 Years
- Mechanical Mounting Format
- Desktop
- Efficiency
- 89%
- Dimensions
- 167x67x35mm
- Output Current mA
- 7500
- Output Current A
- 7.5
- Input Connector
- Cable/Plug
- Output Connection
- DIN 4 Pin
- Isolation Class
- Class 1
- Certifications
- This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details.
- Applications
- ITE does not translate to anything in English as it appears to be an abbreviation or acronym. The translation would depend on the context it is used in.
- Battery Voltage (Nominal) VDC
- 12
- Product Family
- GC120
- LTT is an abbreviation or acronym that may not have a direct translation without context. It may stand for a company name, a tec
- 3
- MKP
- YES
- TK-CODE
- 24/0. [37.56.NO.]/LTT-3
- List Price
- 63.1
