GC220A12-R7B  GC220A12-R7B- Carica Batterie Semplice MeanWell - 220W / 12V / 13,5A  Mean Well  Caricabatterie
zoom_out_map
chevron_left chevron_right

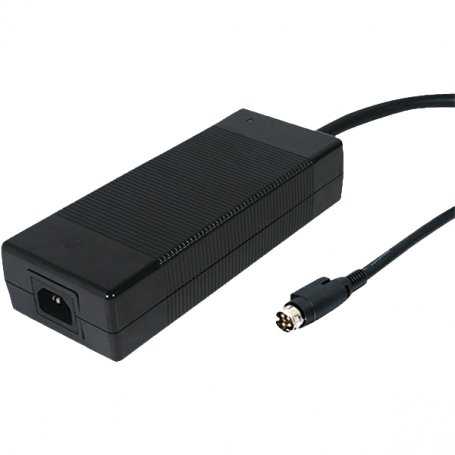

The product image may slightly differ as it is representative of the family and not the model.

Non disponibile - contattaci

GC220A12-R7B- Meanwell - 220W 12V 13.5A Battery Charger

€88.41 Tax excluded

€88.41 Tax excluded

block Non disponibile - contattaci

We will send you an email once the product becomes available. your email address will not be shared with anyone else.

Quantity Unit price Total price Buy
1 €78.26 €78.26
5 €76.69 €383.47
10 €75.13 €751.30
20 €73.56 €1,471.29
Description
  • MeanWell Desktop Power Supply / Mod. GC220A12-R7B
  • Power 220W / 13.6V / 13.5A
  • Triple input
  • Constant Voltage / CV
  • Vin 90~264VAC
  • MeanWell Desktop Power Supply / Model GC220A12-R7B
  • Power 220W / 13.6V / 13.5A
  • Three-pole input
  • Constant Voltage / CV
  • Vin 90~264VAC

REPLACES PB-230-12

Data sheet
Mean Well
GC220A12-R7B
New
3
7438645897250
Output Regulation Type
Constant Voltage / CV
Charger Type
Simple Battery Charger
Output Voltage VDC
14
Input Voltage VAC
90~264VAC
90~264VAC
Operating Temperature
-30°C / +60°C
Power W
220
PFC
Yes
Net Weight
1.1 kg
Output Voltage Nr.
1
Input/Output Isolation
500V
IP Protection Grade
IP20
Warranty
2 Years
Mechanical Mounting Format
Desktop
Efficiency
89%
Dimensions
210x85x46mm
Output Current mA
13500
Output Current A
13.5
Input Connector
Cable/Plug
Output Connection
DIN 4 Pin
Isolation Class
Class 1
Certifications
This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details.
UL
Applications
ITE does not translate to anything in English as it appears to be an abbreviation or acronym. The translation would depend on the context it is used in.
Battery Voltage (Nominal) VDC
12
Product Family
GC220
LTT is an abbreviation or acronym that may not have a direct translation without context. It may stand for a company name, a tec
3
MKP
YES
TK-CODE
3/0. [10.0.NO.]/LTT-3
List Price
105.4
