The product image may slightly differ as it is representative of the family and not the model.

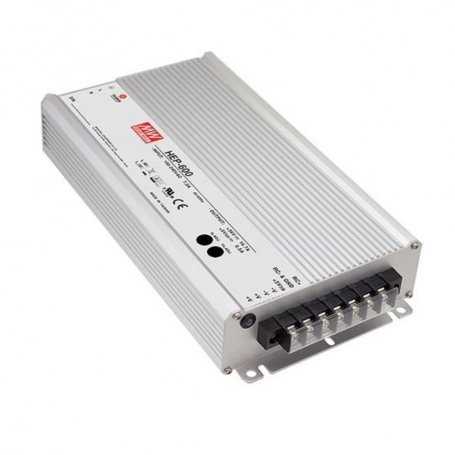

HEP-600 MeanWell 600W LED Power Supply - Constant Voltage CV - Voltages 12V. 15V. 20V. 24V. 30V. 36V. 42V. 48V. 54V
Description
Power supplies for Led Mean Well HEP-600 series, 600Watt power, output voltages 12V, 15V, 20V, 24V, 30V, 36V, 42V, 48V, 54V
LED power supplies Mean Well of the HEP-600 seriesThese are entry-level products, with a 6-year warranty, protected by a sturdy metal frame.
The power supply HEP-600It is an industrial AC/DC power supply. 600WIt is an AC/DC power supply, characterized by operation in difficult environments that are highly humid, dusty, oily and with high vibrations.
The power output is: 600W
The whole HEP series It is equipped with an aluminum structure, completely coated with thermal conductive silicone.
Features:
- MeanWell LED Power Supply
- Universal AC input / Full range (up to 305 VAC)
- Active PFC function built-in
- Energy consumption in the absence of load
- High efficiency up to 96%
- Fanless design, cooling through free air convection
- Working temperature -40 ~ +70℃
- Aluminum casing and filling with thermal conductive silicone
- Resist the 10G vibration test
- The output voltage and output current can be adjusted through the internal potentiometer.
- Protections: short circuit, overload, overvoltage, overtemperature
- LED indicator for power on
- It works up to 5000 meters of altitude.
- Dimensions:280x144x48.5mm
- Warranty: 6 years
Applications:
- Outdoor telecommunications equipment
- Electronic signage and billboard for postings
- Oil rig or mining well facility
Our vote:
- Reliability
- Price
- Characteristics
- [[voto1]You didn't provide any text to translate. Please try again.
- [[voto2]You didn't provide any text to translate. Please try again.
- [[voto3]You didn't provide any text to translate. Please try again.
Main technical specifications
| MODEL | HEP-600-12 | HEP-600-12 | HEP-600-20 | HEP-600-24 | HEP-600-30 | HEP-600-36 | HEP-600-42 | HEP-600-48 | HEP-600-54 | |||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Type of exit | Constant Voltage / CV | |||||||||||||||||||||||||||||||
| Output voltage | 12V | 15V | 20V | 24V | 30V | 36V | 36V | 48V | 54V | |||||||||||||||||||||||
| Output current | 40A | 36A | 28A | 25A | 20A | 16.7A | 14.3A | 12.5A | 11.2A | |||||||||||||||||||||||
| Power | 480W | 540W | 540W | 600W | 600W | 601.2W | 600.6W | 600W | 604.8W | |||||||||||||||||||||||
| Efficiency | 93% | 94% | 95% | 95% | 95.5% | 95.5% | 96% | 96% | 96% | |||||||||||||||||||||||
| Input voltage range | 85~264VAC | |||||||||||||||||||||||||||||||
| Dimmable | NO | |||||||||||||||||||||||||||||||
| Working temperature | -40~ +70 °C | |||||||||||||||||||||||||||||||
| PFC | YES | |||||||||||||||||||||||||||||||
| Dimensions | 280x144x48.5mm | |||||||||||||||||||||||||||||||
| Certifications | CE, CB, EAC | |||||||||||||||||||||||||||||||
| For purchases and sampling | CONTACT US | |||||||||||||||||||||||||||||||
See also:
Download the LED power supply catalogs in the attachments tab.
Data sheet
- Output Regulation Type
- Constant Voltage / CV
- Input Voltage VAC
- 85~264VAC
85~264VAC - Operating Temperature
- -40°C / +70°C
- Rating
- 453
- Power W
- 600
- PFC
- Yes
- Warranty
- 6 Years
- Mechanical Mounting Format
- Closed Metal Container
- Efficiency
- 96%
- Dimensions
- 280x144x48.5mm
- Output Current mA
- 11200
12500
14300
16700
20000
25000
28000
36000
40000 - Output Current A
- 11.2
12.5
14.3
16.7
20
25
28
36
40 - Input Connector
- At Speed
- Output Connection
- At Speed
- Certifications
- Sure, but could you please provide the full text that you would like translated?
This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details. - Applications
- LED Power Supply
- Input Voltage VAC (Nominal)
- 110
220 - Product Family
- Sure, I'd be happy to help. Could you please provide the text you want to be translated?
