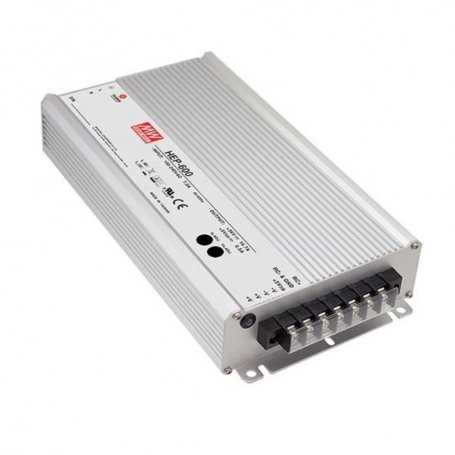

The product image may slightly differ as it is representative of the family and not the model.
HEP-600C MeanWell 600W LED Power Supply - Constant Voltage CV - Voltages 12V. 24V. 48V
Description
Power supplies for Led Mean Well series HEP-600C, power 600Watt, output voltages 12V, 24V, 48V
The LED power supplies, Mean Well from the HEP-600C series are entry level products, with a 6 year warranty, protected by a sturdy metal structure.
The HEP-600C power supply is a 600W industrial AC / DC power supply, thanks to the absence of fans it can operate in difficult environments highly humid, dusty, oily and with high vibrations.
The power delivered is: 600W
The entire HEP series is equipped with an aluminum structure, completely coated with thermal conducting silicone.
Features:
- MeanWell LED Power Supply
- Charger for lead batteries (flooded, gel and AGM,) and lithium-ion batteries (lithium iron and manganese)
- 3 charging phases
- Universal AC input / Full range (up to 305 VAC)
- Built-in active PFC function
- No load power consumption
- High efficiency up to 95.5%
- Fanless design, cooling by free air convection
- Working temperature -40 ~ +70℃
- Aluminum housing and filling with thermal conducting silicone
- Resistant to 10G vibration test
- Output voltage and output current can be adjusted via the internal potentiometer
- Protections: short circuit, overload, overvoltage, overtemperature
- 3-color LED loading indicator
- Operates up to 5000 meters in altitude
- Dimensions: 280x144x48.5mm
- Warranty: 6 years
Applications:
- Suitable for chargers in difficult environments
- Robotic lawnmower
- Electronic vehicle
- Pleasure boat, personal yacht or work boat
- Network and security system
Our rating:
- Reliability
- Price
- Features
- ⚡⚡⚡⚡
- ⚡⚡⚡⚡⚡
- ⚡⚡⚡
Main technical specifications
| MODEL | HEP-600C-12 | HEP-600C-24 | HEP-600C-48 | |||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Output type | Constant Voltage / CV | |||||||||||||||||||||||||
| Boost charging output voltage | 14.4V | 28.8V | 57.6V | |||||||||||||||||||||||
| Floating charge output voltage | 13.6V | 27.2V | 54.4V | |||||||||||||||||||||||
| Output voltage adjustment range | 11.5 ~ 15.1V | 23 ~ 30.2V | 46.1 ~ 60.5V | |||||||||||||||||||||||
| Output current | 35A | 21A | 10.5A | |||||||||||||||||||||||
| Efficiency | 93.5% | 94.5% | 95.5% | |||||||||||||||||||||||
| Input voltage range | 85~264VAC | |||||||||||||||||||||||||
| Dimmable | NO | |||||||||||||||||||||||||
| Working temperature | -40~ +70 °C | |||||||||||||||||||||||||
| PFC | YES | |||||||||||||||||||||||||
| Dimensions | 280x144x48.5mm | |||||||||||||||||||||||||
| Certifications | CE, CB, EAC | |||||||||||||||||||||||||
| For purchases and samples | CONTACT US | |||||||||||||||||||||||||
See also:
Download the LED power supply catalogs in the attachments tab.
Data sheet
- Output Regulation Type
- Constant Voltage / CV
- Input Voltage VAC
- 85~264VAC
85~264VAC - Operating Temperature
- -40°C / +70°C
- Rating
- 453
- Power W
- 600
- PFC
- Yes
- Warranty
- 6 Years
- Mechanical Mounting Format
- Closed Metal Container
- Efficiency
- 95.5%
- Dimensions
- 280x144x48.5mm
- Output Current mA
- 10500
21000
35000 - Output Current A
- 10.5
21
35 - Input Connector
- At Speed
- Output Connection
- At Speed
- Certifications
- Sure, but could you please provide the full text that you would like translated?
This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details. - Applications
- LED Power Supply
- Input Voltage VAC (Nominal)
- 110
220 - Product Family
- Sure, I'd be happy to help. Could you please provide the text you want to be translated?
