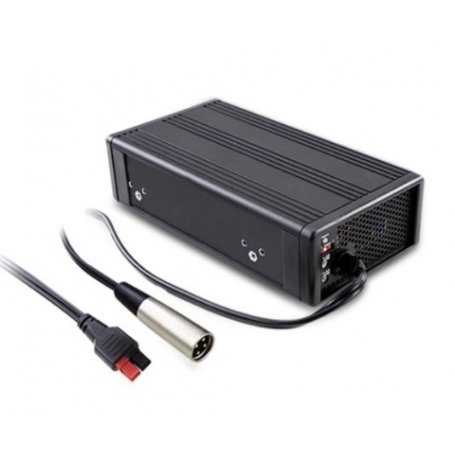

NPB-120 - Meanwell - Carica Batterie 120W / 12V - 24V - 48V / 20A - 12A - 6A
zoom_out_map
chevron_left chevron_right

The product image may slightly differ as it is representative of the family and not the model.

NPB-120 - Meanwell - Battery Charger 120W / 12V - 24V - 48V / 6.8A - 4A - 2A

€59.85 NPB-120-12XLR
€61.04 NPB-120-12AD1
€62.72 NPB-120-12TB
€61.04 NPB-120-24XLR
€61.04 NPB-120-24AD1
€61.04 NPB-120-24TB
€61.04 NPB-120-48XLR
€61.04 NPB-120-48AD1
€61.04 NPB-120-48TB

€59.85 Tax excluded

€59.85 Tax excluded

error_outline Product available with different options

We will send you an email once the product becomes available. your email address will not be shared with anyone else.

Quantity Unit price Total price Buy
1 €59.85 €59.85
5 €58.65 €293.27
10 €57.46 €574.56
20 €56.26 €1,125.18
Description

Available models: NPB-120-12, NPB-120-24, NPB-120-48

  • Universal input 90-264VAC
  • Integrated PFC
  • Chargers compatible with lead-acid and li-ion batteries
  • Wide range adjustable through VR (adjustable charging voltage, adjustable charging current).
  • 2 or 3 stages selectable via dip switch
  • Fanless design
  • Working temperature -30°C - +70°C
  • Protections: SCP - OVP - OTP - Reverse polarity protection
  • UL/EN62368-1 and EN60335-1/2-29 certifications
  • Charge indicator LED
  • 3 year warranty

Applications:

  • Radio backup system
  • Electric scooter charger
  • Camper - Bus - Work vehicles - Special vehicles
  • Surveillance systems

Our vote:

  • Reliability
  • Price
  • Features
    • [[voto1]There is no text provided to translate. Please provide the text you want translated.
    • [[voto2]There is no text provided to translate. Please provide the text you want translated.
    • [[voto3]There is no text provided to translate. Please provide the text you want translated.






Main technical specifications

MODEL

The text appears to be a code or a product/model number, and it doesn't have a direct translation in English. It remains "NPB-240-12[]" in English.

NPB-240-24[]

NPB-240-48[]

Input Voltage Vac

90-264VAC - 127-370VDC

Recommended battery capacity

20-90Ah

15-50Ah

7-25Ah

Maximum output current

6.8A

4A

2A

Boost Tension

Float Voltage

14.4 V

13.8 V

28.8 V

27.6 V

57.6 V

55.2 V

Efficiency

> 86.5%

> 89%

90.5%

Protections

SCP - OVP - OTP - Reverse polarity protection

Certifications

CB IEC62368-1,IEC60335-1/2-29, Dekra BS EN/EN62368-1,BS EN/EN60335-1/2-29, UL62368-1, AS/NZS60335-1/2-29, EAC TP TC 004

Working temperature

-30°C - +70°C

Dimensions

182.7*96*49mm

Weight

1.3 Kg

For purchases and sampling

CONTACT US





Data sheet
Mean Well
NPB-120-12XLR
New
0 Items
7438645969438
3
Output Regulation Type
Constant Voltage / CV
Charger Type
Simple Battery Charger
Output Voltage VDC
14.4
28.8
57.6
Input Voltage VAC
90~264VAC
127 ~ 370VDC
Operating Temperature
-40°C / +85°C
Rating
453
Power W
120
PFC
Yes
Net Weight
1.3 kg
Output Voltage Nr.
1
Input/Output Isolation
500V
Warranty
3 Years
Mechanical Mounting Format
Boxed - Frame Assembly
Efficiency
87%
89.5%
90.5%
Dimensions
182.7*96*49mm
Output Current mA
2000
4000
6800
Output Current A
2
4
6.8
Input Connector
Cable/Plug
Output Connection
Anderson Connector
At Speed
XLR 4P, Male Type
Certifications
Sure, but could you please provide the full text that you would like translated?
This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details.
UL
Applications
Automotive
Battery Charger
Security
Battery Voltage (Nominal) VDC
12
24
48
Product Family
Sure, I'd be happy to help. Please provide the text you would like to be translated.
