NPB-1200 - Meanwell - Carica Batterie 1200W / 12V - 24V - 48V / 70A - 36A - 18A
zoom_out_map
chevron_left chevron_right

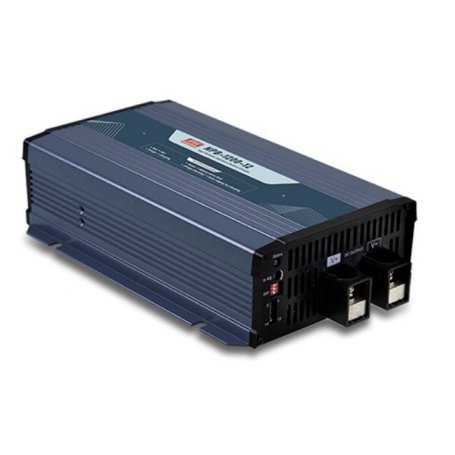

The product image may slightly differ as it is representative of the family and not the model.

NPB-1200 - Meanwell - Battery Charger 1200W / 12V - 24V - 48V / 70A - 36A - 18A

€257.95 NPB-1200-12
€257.95 NPB-1200-24
€257.95 NPB-1200-48

€257.95 Tax excluded

€257.95 Tax excluded

error_outline Product available with different options

We will send you an email once the product becomes available. your email address will not be shared with anyone else.

Quantity Unit price Total price Buy
1 €257.95 €257.95
5 €252.79 €1,263.96
10 €247.63 €2,476.32
20 €242.47 €4,849.46
Description

Available models: NPB-1200-12, NPB-1200-24, NPB-1200-48

  • Universal ultra wide self-adjusting input
  • Integrated CANBus
  • Integrated PFC
  • Chargers compatible with lead-acid and li-ion batteries
  • 2 or 3 stages selectable via dip switch
  • 2 or 3 stages programmable via SBP-001
  • Temperature compensation to extend battery life (lead-acid only)
  • ON-OFF control of the cooling fan
  • Working temperature -30°C - +70°C
  • Protections: SCP - OVP - OTP - Reverse polarity protection
  • UL/EN62368-1 and EN60335-1/2-29 certifications
  • Charge indicator LED
  • 3 year warranty

Applications:

  • Radio backup system
  • AGV
  • E-Bike, E-Scooter
  • Floor cleaning robot
  • Electric scooter charger
  • Camper - Bus - Work vehicles - Special vehicles
  • Surveillance systems

Our vote:

  • Reliability
  • Price
  • Features
    • [[voto1]There is no text provided to translate. Please provide the text you want translated.
    • [[voto2]There is no text provided to translate. Please provide the text you want translated.
    • [[voto3]There is no text provided to translate. Please provide the text you want translated.



Main technical specifications

MODEL

NPB-1200-12

NPB-1200-24

NPB-1200-48

Input Voltage Vac

90-264VAC - 127 - 370VDC

Recommended battery capacity

240-800Ah

120-420Ah

60-210Ah

Maximum output current

43A

22.5A

11.3A

Boost Tension

Float Voltage

14.4 V

13.8 V

28.8 V

27.6 V

57.6 V

55.2 V

Efficiency

92%

93%

94%

Protections

SCP - OVP - OTP - Reverse polarity protection

Certifications

CB IEC62368-1,IEC60335-1/2-29, Dekra BS EN/EN62368-1,BS EN/EN60335-1/2-29, UL62368-1, AS/NZS60335-1/2-29, EAC TP TC 004

Working temperature

-30°C - +70°C

Dimensions

250*158*67mm

Weight

4.26 lbs

For purchases and sampling

CONTACT US



Data sheet
Mean Well
NPB-1200-12
New
0 Items
0402108707291
3
Output Regulation Type
Constant Voltage / CV
Charger Type
Simple Battery Charger
Output Voltage VDC
14.4V, 28.8V, 57.6V
Input Voltage VAC
90~264VAC
127 ~ 370VDC
Operating Temperature
-30°C / +70°C
Rating
453
Power W
1200
PFC
Yes
Net Weight
1.9 kg
Output Voltage Nr.
1
Input/Output Isolation
500V
Warranty
3 Years
Mechanical Mounting Format
Boxed - Frame Assembly
Efficiency
92%
93%
94%
Dimensions
250*158*67mm
Output Current mA
18000
36000
70000
Output Current A
18
36
70
Input Connector
Cable/Plug
Output Connection
At Speed
Certifications
Sure, but could you please provide the full text that you would like translated?
This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details.
UL
Applications
Automotive
Battery Charger
Security
Battery Voltage (Nominal) VDC
12, 24, 48
Product Family
Sure, but it seems like "NPB" is an acronym. Could you please provide more context or specify the text you need to be translated?
