NPP-1700 - Meanwell - Carica Batterie 1700W / 12V - 24V - 48V / 85A - 50A - 25A
zoom_out_map
chevron_left chevron_right

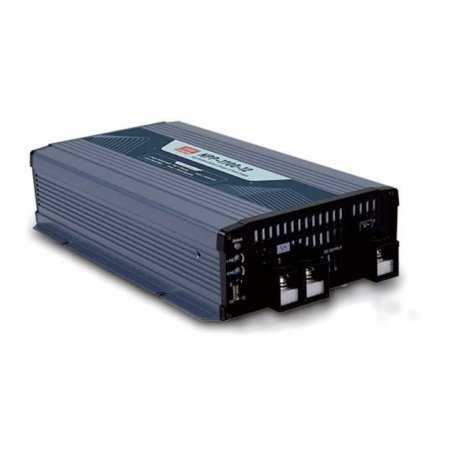

The product image may slightly differ as it is representative of the family and not the model.

Non disponibile - contattaci

NPP-1700 - Meanwell - Battery Charger 1700W / 12V - 24V - 48V / 85A - 50A - 25A

€308.00 NPP-1700-12
€308.00 NPP-1700-24
€457.66 NPP-1700-48

€308.00 Tax excluded

€308.00 Tax excluded

block Non disponibile - contattaci

We will send you an email once the product becomes available. your email address will not be shared with anyone else.

Quantity Unit price Total price Buy
1 €308.00 €308.00
5 €301.84 €1,509.20
10 €295.68 €2,956.80
20 €289.52 €5,790.40
Description

Available models: NPP-1700-12, NPP-1700-24, NPP-1700-48

  • Multifunction unit that can be used both as a charger and as a power supply.
  • Current and voltage output adjustable through potentiometer
  • Integrated PFC
  • Chargers compatible with lead-acid
  • Remote ON-OFF control
  • Working temperature -30°C - +70°C
  • Protections: SCP - OVP - OTP - OCP
  • UL/EN62368-1 and EN60335-1/2-29 certifications
  • 3 year warranty

Applications:

  • Radio backup system
  • E-Bike, E-Scooter
  • Industrial control systems
  • Electric scooter charger
  • Camper - Bus - Work vehicles - Special vehicles
  • Surveillance systems

Our vote:

  • Reliability
  • Price
  • Features
    • [[voto1]There is no text provided to translate. Please provide the text you want translated.
    • [[voto2]There is no text provided to translate. Please provide the text you want translated.
    • [[voto3]There is no text provided to translate. Please provide the text you want translated.



Main technical specifications

MODEL

NPP-1700-12

NPP-1700-24

NPP-1700-48

Input Voltage Vac

90-264VAC - 127-370VDC

Recommended battery capacity

300-1000Ah

200-640Ah

100-330Ah

Maximum output current

85A

50A

25A

Boost Tension

Float Voltage

14.4 V

13.8 V

28.8 V

27.6 V

57.6 V

55.2 V

Efficiency

92%

93%

94%

Protections

SCP - OVP - OTP - OVC (Note: These appear to be acronyms and do not translate between languages. They will keep their original form unless they specifically pertain to a context with a known translation.)

Certifications

CB IEC62368-1,IEC60335-1/2-29, Dekra BS EN/EN62368-1,BS EN/EN60335-1/2-29, UL62368-1, AS/NZS60335-1/2-29, EAC TP TC 004

Working temperature

-30°C - +70°C

Dimensions

300*184*70mm

Weight

2.96 Kg

For purchases and sampling

CONTACT US



Data sheet
Mean Well
NPP-1700-12
New
0402108707269
Output Regulation Type
Constant Voltage / CV
Charger Type
Simple Battery Charger
Output Voltage VDC
14.4V, 28.8V, 57.6V
Input Voltage VAC
90~264VAC
Operating Temperature
-30°C / +70°C
Rating
453
Power W
1700
PFC
Yes
Net Weight
2.9 kg
Output Voltage Nr.
1
Input/Output Isolation
500V
Warranty
3 Years
Mechanical Mounting Format
Boxed - Frame Assembly
Efficiency
92%
93%
94%
Dimensions
300*184*70mm
Output Current mA
25000
50000
85000
Output Current A
25
50
85
Input Connector
Cable/Plug
Output Connection
At Speed
Certifications
Sure, but could you please provide the full text that you would like translated?
This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details.
UL
Applications
Automotive
Battery Charger
Security
Battery Voltage (Nominal) VDC
12, 24, 48
Product Family
Can you please provide the full text you would like to be translated from Italian to English? "NPP" by itself does not provide enough context for an accurate translation.
