The product image may slightly differ as it is representative of the family and not the model.

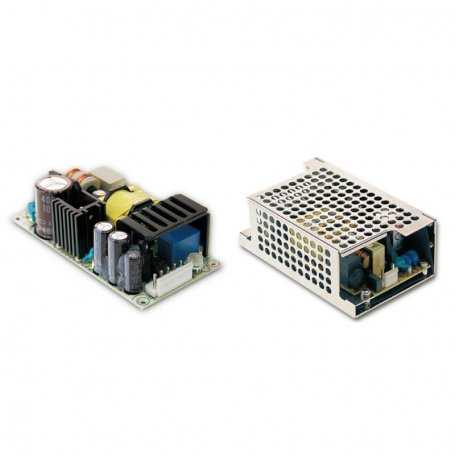

PSC-60A-C- DC UPS System Simple MeanWell - 60W 12V 4.3A
Description
- MeanWell Boxed Power Supply / Mod. PSC-60A-C
- Power 60W
- Double Output 13.8V 4.3A / 13.8V 1.50A
- Constant Voltage / CV
- Vin 90~264VAC
- Boxed Power Supply MeanWell / Mod. PSC-60A-C
- Power 60W
- Dual Output 13.8V 4.3A / 13.8V 1.50A
- Constant Voltage / CV
- Vin 90~264VAC
Data sheet
- Output Regulation Type
- Constant Voltage / CV
- Charger Type
- DC UPS System Semplice
- Output Voltage VDC
- 14
- Output Voltage 2 VDC
- 13.8
- Input Voltage VAC
- 90~264VAC
90~264VAC - Operating Temperature
- -4°F / +158°F
- Fault Signaling Type
- TTL
- Power W
- 60
- PFC
- No
- Net Weight
- 0.29 kg
- Output Voltage Nr.
- 2
- Input/Output Isolation
- 500V
- Battery Failure
- Battery Failure Alarm
- IP Protection Grade
- IP20
- Warranty
- 2 Years
- Mechanical Mounting Format
- Boxed - Frame Assembly
- Efficiency
- 84%
- Dimensions
- 103.4x62x37mm
- Output Current mA
- 4300
- Output Current A
- 4.3
- Output Current 2 mA
- 1500
- Input Connector
- Connector
- Output Connection
- Connector
- Certifications
- This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details.
UL - Special Features
- UPS Function
- Applications
- ITE does not translate to anything in English as it appears to be an abbreviation or acronym. The translation would depend on the context it is used in.
Industrial Automation - Battery Voltage (Nominal) VDC
- 12
- Product Family
- PSC in English stands for "Public Service Commission." However, due to the limited context, PSC could also refer to other terms or entities. Could you please provide more context or specify the field or area in which PSC is used?
- LTT is an abbreviation or acronym that may not have a direct translation without context. It may stand for a company name, a tec
- 1
- MKP
- YES
- TK-CODE
- 35/1. [136.0.NO.]/LTT-1
- List Price
- 37.7
