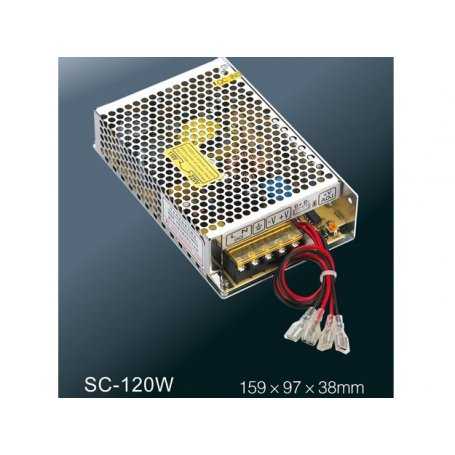

SC-120W Hengwei Power UPS Battery Charger 120W - 13.8V, 27.6V
zoom_out_map
chevron_left chevron_right

The product image may slightly differ as it is representative of the family and not the model.

SC-120W Hengwei Power UPS Battery Charger 120W - 13.8V, 27.6V

€48.51 SC-120-13.8
€48.51 SC-120-27.6

€35.42 Tax excluded

€35.42 Tax excluded

check Available

Buy it now and receive it 11/27/24 with TNT Express

Quantity Unit price Total price Buy
1 €48.51 €48.51
5 €47.54 €237.70
10 €46.57 €465.70
20 €45.60 €911.99
Description

Available models: SC-120-13.8, SC-120-27.6

Features:

  • AC input selectable by switch (110V or 220V)
  • Compact design, light weight, high efficiency
  • Protections: short circuit / overload / overvoltage
  • Indicator for power on / recharge / normal (LED)
  • Full load burn-in test
  • Low voltage battery protection
  • 2 years warranty

Our rating:

  • Reliability
  • Price
  • Features
    • ⚡⚡⚡⚡
    • ⚡⚡⚡⚡
    • ⚡⚡⚡⚡



Main technical specifications

MODEL

SC-120-13.8

SC-120-27.6

Input Voltage Vac

90-132VAC/180-264VAC (by switch) - 255-370VDC

Output voltage

CH1: 13.8V

CH2: 13.4V

CH1: 27.6V

CH1: 26.5V

Nominal output current

CH1: 8A

CH2: 0.5A

CH1: 4A

CH2: 0.3A

Efficiency

84%

86%

Protections

Overload, low power battery protection (cutoff output)

Certifications

UL 62368-1, TUV 62368-1, EN 62368-1, EN 55032 CLASS A

Working temperature

-20° - 50°C

Dimensions

199*98*38 mm

Weight

0.6 Kg

For purchases and samples

CONTACT US



Technical details



Attachments

SC-120W Datasheet

SC-120W Datasheet

file_download Download (1.42MB)

Data sheet
Hengwei
SC-120-13.8
New
31 Items
1
Current Protection Type
Constant Current
Charger Type
DC UPS System Evoluto
Output Voltage VDC
13.8
27.6
Input Voltage VAC
90~132VAC / 180~264VAC
90~132VAC / 180~264VAC
Operating Temperature
-4°F / +122°F
Rating
444
Power W
120
Output Voltage Nr.
2
Number of Channels
2
IP Protection Grade
IP20
Warranty
2 Years
Mechanical Mounting Format
Boxed - Frame Assembly
Perforated Metal Container
Efficiency
84%
86%
Dimensions
199*98*38mm
Output Current mA
300
500
4000
8000
Output Current A
0.3
0.5
4
8
Input Connector
At Speed
Output Connection
At Speed
Isolation Class
Class 1
Certifications
This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details.
Input Voltage VAC (Nominal)
110
220
