The product image may slightly differ as it is representative of the family and not the model.

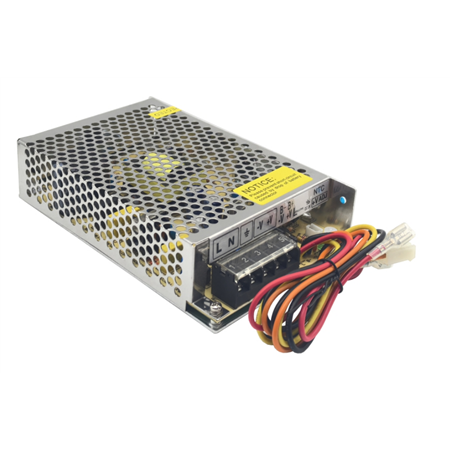

SC-60W Hengwei Power UPS Battery Charger 60W - 13.8V, 27.6V
Description
Available models: SC-60-12, SC-60-24
Features:
- Universal AC input
- Compact design, contained weight, high efficiency
- Protections: short circuit / overload / overvoltage
- Indicator for power on / recharge / normal (LED)
- Full load burn-in test
- Low voltage battery protection
- 2 years warranty
Our rating:
- Reliability
- Price
- Features
- ⚡⚡⚡⚡
- ⚡⚡⚡⚡
- ⚡⚡⚡⚡
Main technical specifications
|
MODEL |
SC-60-12 |
SC-60-24 |
|---|---|---|
|
Input Voltage Vac |
90-264VAC - 127-370VDC |
|
|
Output voltage |
CH1: 13.8V CH2: 13.4V
|
CH1: 27.6V CH1: 26.5V |
|
Output current nominal |
CH1: 4A CH2: 0.35A |
CH1: 2A CH2: 0.25A |
|
Efficiency |
81% |
83% |
|
Protections |
Overload, low power battery protection (cutoff output) |
|
|
Certifications |
UL 62368-1, TUV 62368-1, EN 62368-1, EN 55032 CLASS A |
|
|
Working temperature |
-10° - 60°C |
|
|
Dimensions |
129*96*38 mm |
|
|
Weight |
0.52 Kg |
|
|
For purchases and samples |
||
Data sheet
- Current Protection Type
- Constant Current
- Charger Type
- DC UPS System Evoluto
- Output Voltage VDC
- 13.8
27.6 - Input Voltage VAC
- 90~264VAC
90~264VAC - Operating Temperature
- -10°C / +60°C
- Rating
- 444
- Power W
- 60
- Output Voltage Nr.
- 2
- Number of Channels
- 2
- IP Protection Grade
- IP20
- Warranty
- 2 Years
- Mechanical Mounting Format
- Boxed - Frame Assembly
Perforated Metal Container - Efficiency
- 81%
83% - Dimensions
- 129*96*38mm
- Output Current mA
- 250
350
2000
4000 - Output Current A
- 0.25
0.35
2
4 - Input Connector
- At Speed
- Output Connection
- At Speed
- Isolation Class
- Class 1
- Certifications
- This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details.
- Battery Voltage (Nominal) VDC
- 12
- Input Voltage VAC (Nominal)
- 110
220
