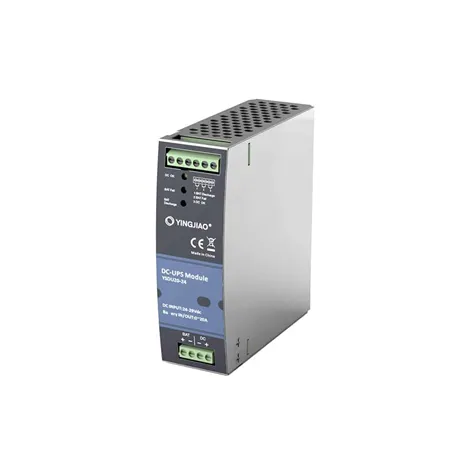

YSDU20 Yingjiao DC-UPS guida Din 20A 24V
zoom_out_map
chevron_left chevron_right

The product image may slightly differ as it is representative of the family and not the model.

Non disponibile - contattaci

YSDU20 Yingjiao DC-UPS Din guide 20A 24V

We will send you an email once the product becomes available. your email address will not be shared with anyone else.

Quantity Unit price Total price Buy
1 €0.00 €0.00
5 €0.00 €0.00
10 €0.00 €0.00
20 €0.00 €0.00
Description

Yinjiao DC-UPS DIN guide YSDU20-24

Features

  • Uninterrupted DC-UPS (Uninterruptible Power Supply)
  • Parallel connection to the DC BUS
  • Suitable for 24V systems, up to 20A
  • 2A battery charging current
  • Allows the use of lead batteries with capacities ranging from 4AH to 135AH
  • LED indicator for signal status
  • Complete diagnosis and monitoring for the DC BUS, battery discharge, and battery failure.

The 20A DIN guide DC-UPS module by Yingjiao can be paired with a power supply and an external battery to achieve backup function. When the main AC power drops or is interrupted, the load will be immediately connected to the battery pack to avoid interruptions and ensure the continuous operation of the entire system (the operating time depends on the capacity of the battery pack).

Our rating:

  • Reliability
  • Price
  • Features
    • ⚡⚡⚡⚡
    • ⚡⚡⚡⚡⚡
    • ⚡⚡⚡

Main Technical Specifications

MODEL YSDU20-24
Nominal battery voltage 24V
Nominal output current 20A
Charging current 2A
Working temperature -30 ~ +70 ℃
Dimensions 40x125x113mm
Certification FCC, CE, UKCA
For purchases and samples CONTACT US

See also:

Download the Din Guide power supplies catalogs in the attachments tab.


Data sheet
Yingjiao
YSDU20
New
Charger Type
DC UPS System Semplice
Output Voltage VDC
24
Operating Temperature
-30°C / +70°C
Rating
453
Battery Failure
Battery Failure Alarm
Warranty
3 Years
Mechanical Mounting Format
Din Rail
Dimensions
40x125x113mm
Output Current mA
20000
Output Current A
20
Output Connection
At Speed
Certifications
FCC
This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details.
UKCA
Special Features
UPS Function
Applications
DIN Panel
ITE does not translate to anything in English as it appears to be an abbreviation or acronym. The translation would depend on the context it is used in.
Industrial Automation
Battery Voltage (Nominal) VDC
24
Input Voltage VAC (Nominal)
110
220
