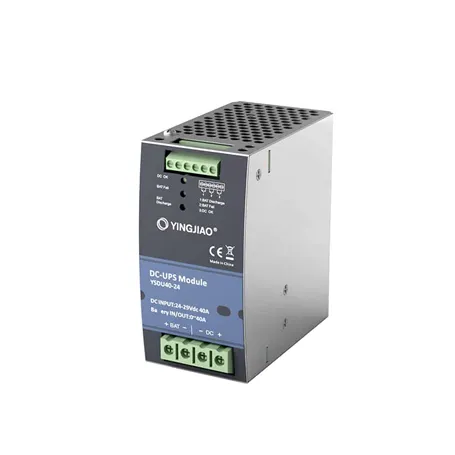

YSDU40 Yingjiao DC-UPS guida Din 40A 24V
zoom_out_map
chevron_left chevron_right

The product image may slightly differ as it is representative of the family and not the model.

Non disponibile - contattaci

YSDU40 Yingjiao DC-UPS Din guide 40A 24V

We will send you an email once the product becomes available. your email address will not be shared with anyone else.

Quantity Unit price Total price Buy
1 €0.00 €0.00
5 €0.00 €0.00
10 €0.00 €0.00
20 €0.00 €0.00
Description

Yinjiao DC-UPS DIN guide YSDU40-24

Features

  • Uninterrupted DC-UPS (Uninterruptible Power Supply)
  • Parallel connection to the DC BUS
  • Suitable for 24V systems, up to 40A
  • Battery charging current of 2A
  • Allows the use of lead batteries with capacities ranging from 4AH to 135AH
  • LED indicator for signal status
  • Complete diagnosis and monitoring for the DC BUS, battery discharge, and battery failure.

The 40A DIN guide DC-UPS module from Yingjiao can be combined with an external power supply and battery to achieve backup function. When the main AC power supply falls or is interrupted, the load will be immediately connected to the battery pack to avoid interruptions and ensure the continuous operation of the entire system (operating time depends on the capacity of the battery pack).

Our rating:

  • Reliability
  • Price
  • Features
    • ⚡⚡⚡⚡
    • ⚡⚡⚡⚡⚡
    • ⚡⚡⚡

Main technical specifications

MODEL YSDU40-24
Rated battery voltage 24V
Rated output current 40A
Charge current 2A
Operating temperature -30 ~ +70 ℃
Dimensions 63x125x113mm
Certification FCC, CE, UKCA
For purchases and samples CONTACT US

See also:

Download the Din Rail power supplies Catalogs in the attachments tab.


Data sheet
Yingjiao
YSDU40
New
Charger Type
DC UPS System Semplice
Output Voltage VDC
24
Operating Temperature
-30°C / +70°C
Rating
453
Battery Failure
Battery Failure Alarm
Warranty
3 Years
Mechanical Mounting Format
Din Rail
Dimensions
63x125x113mm
Output Current mA
40000
Output Current A
40
Output Connection
At Speed
Certifications
FCC
This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details.
UKCA
Special Features
UPS Function
Applications
DIN Panel
ITE does not translate to anything in English as it appears to be an abbreviation or acronym. The translation would depend on the context it is used in.
Industrial Automation
Battery Voltage (Nominal) VDC
24
Input Voltage VAC (Nominal)
110
220
