The product image may slightly differ as it is representative of the family and not the model.

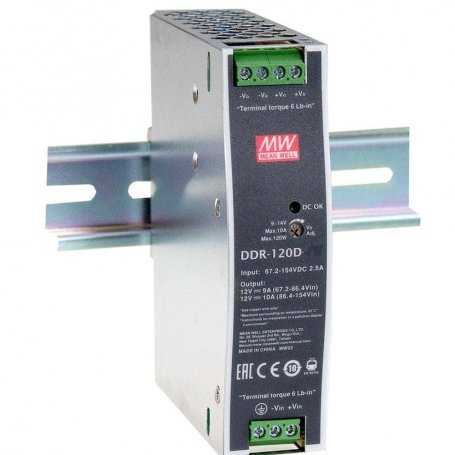

DDR-120 - Meanwell - DC-DC Converter 120W - Output Voltage 12V 24V 48V
Description
DC DC Converter Mean Well series DDR-120, power 120Watt, rated current 2.1A, 2.5A, 4.2A, 5A, 8.3A, 10A.
The DDR-120 seriesIt's a DC-DC converter on DIN guide 120 W with easy installation, ultra-thin width (32 mm), wide 2:1 input voltage, fanless design, -40 ~ +70 ° C wide operating temperature, 4KVdc I/O isolation, 150% peak load, current sharing, DC OK, adjustable output voltage and complete protection functions.
The DDR-240 series It has been specifically designed for applications such as buses, trams, subways or railway systems, industrial control system.
Features:
- MeanWell Din Rail Power Supply
- Power 120W
- Compliant with railway standards EN50155 / EN45545-2
- Dimensions: 32x125.2x102mm
- Wide Range Input 2:1
- Adjustable DC output
- Peak charge up to 150%
- It can be installed on DIN TS-35-7.5/15
- Air cooling
- Protections: Short circuit / Overload / Overvoltage / Overheating / Reverse polarity input / Under-voltage input
- Reinforced isolation (4k I/O)
- DC contact relay OK
- Warranty: 3 years
Applications:
- Applications on trains, buses, subways or rail systems
- Industrial control system
- Semiconductor
- Industrial automation
- Wireless network
Our vote:
- Reliability
- Price
- Characteristics
-
- [[voto1]You haven't provided any Italian text to translate. Please provide the text you want to be translated into English.
- [[voto2]You haven't provided any Italian text to translate. Please provide the text you want to be translated into English.
- [[voto3]You haven't provided any Italian text to translate. Please provide the text you want to be translated into English.
Mechanical Features
Main technical specifications
| MODEL | DDR-120A-12 | DDR-120A-24 | DDR-120A-48 | DDR-120B-12 | DDR-120B-24 | DDR-120B-48 | DDR-120C-12 | DDR-120C-24 | DDR-120C-48 | DDR-120D-12 | DDR-120D-24 | DDR-120D-48 | |||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DC output voltage | 12V | 24V | 48V | 12V | 24V | 48V | 12V | 24V | 48V | 12V | 24V | 48V | |||||||||||||||||||||||
| Nominal Output Current | 8.3A | 4.2A | 2.1A | 10A | 5A | 2.5A | 10A | 5A | 2.5A | 10A | 5A | 2.5A | |||||||||||||||||||||||
| Current output range | 0 ~ 8.3A | 0 ~ 4.2A | 0 ~ 2.1A | 0 ~ 10A | 0 ~ 5A | 0 ~ 2.5A | 0 ~ 10A | 0 ~ 5A | 0 ~ 2.5A | 0 ~ 10A | 0 ~ 5A | 0 ~ 2.5A | |||||||||||||||||||||||
| Nominal output power | 99.6W | 100.8W | 100.8W | 120W | 120W | 120W | |||||||||||||||||||||||||||||
| Input voltage range | 9 ~ 18Vdc | 16.8 33.6Vdc | 33.6 ~ 67.2Vdc | 67.2 ~ 154Vdc | |||||||||||||||||||||||||||||||
| Working temperature | -40 ~ +70 °C | ||||||||||||||||||||||||||||||||||
| Efficiency | 88.5% | 88.5% | 88.5% | 89% | 89.5% | 91% | 89.5% | 91% | 92% | 89.5% | 91% | 91.5% | |||||||||||||||||||||||
| PFC | NO | ||||||||||||||||||||||||||||||||||
| Dimensions | 32x125.2x102mm | ||||||||||||||||||||||||||||||||||
| For purchases and sampling | CONTACT US | ||||||||||||||||||||||||||||||||||
See also:
Download the Din power supply catalogs in the attachments tab.
Data sheet
- Input VDC (Nominal)
- 5
9
12
15
16
24
32 - Output Regulation Type
- Constant Voltage / CV
- Output Voltage VDC
- 12
24
48 - Input Voltage VDC (Range)
- 9~18VDC
16.8 ~ 33.6VDC
33.6 ~ 67.2VDC
67.2 ~ 154VDC - Operating Temperature
- -40°C / +70°C
- Rating
- 453
- Power W
- 120
- PFC
- No
- Warranty
- 3 Years
- Mechanical Mounting Format
- Din Rail
- Efficiency
- 92%
- Dimensions
- 32x125.2x102mm
- Output Current A
- 2.1
2.5
4.2
5
8.3
10 - Output Connection
- At Speed
- Certifications
- Sure, but could you please provide the full text that you would like translated?
This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details.
UL - Applications
- DIN Panel
ITE does not translate to anything in English as it appears to be an abbreviation or acronym. The translation would depend on the context it is used in.
Industrial Automation - Product Family
- DDR stands for Deutsche Demokratische Republik, which translates to the German Democratic Republic (GDR).
