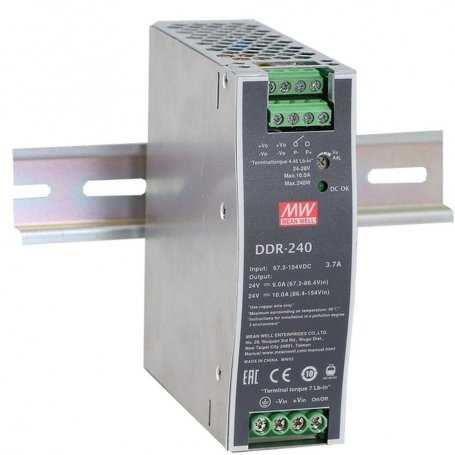

The product image may slightly differ as it is representative of the family and not the model.
DDR-240 - Meanwell - 240W dc-dc converter - Voltages 24V 48V
Description
DC DC Converter Mean Well series DDR-240, power 240Watt, nominal current 5A, 10A.
The DDR-240 series is a DC-DC converter on DIN rail of 240 W with easy installation, ultra slim width (40 mm), wide input voltage 2: 1, fanless design, -40 ~ +70 ° C wide operating temperature, 4KVdc I/O insulation, 150% peak load, current sharing, DC OK, adjustable output voltage and full protection functions.
The DDR-240 series has been specifically designed for applications such as buses, trams, subways or rail systems, industrial control system.
Features:
- MeanWell Din Rail Power Supply
- 240W Power
- Complies with EN50155 / EN45545-2 railway standards
- Dimensions: 40x125.2x113.5mm
- Wide 2:1 Input Range
- Adjustable DC output
- Peak load up to 150%
- Can be installed on DIN TS-35-7.5/15
- Air cooling
- Protections: Short circuit / Overload / Overvoltage / Overheating / Reverse polarity input / Input under voltage
- Reinforced insulation (4k I/O)
- Remote ON/OFF control
- DC OK relay contact
- Warranty: 3 years
Applications:
- Applications on trains, buses, subways or rail systems
- Industrial control system
- Semiconductor
- Industrial automation
- Wireless network
Our rating:
- Reliability
- Price
- Features
- ⚡⚡⚡⚡
- ⚡⚡⚡⚡⚡
- ⚡⚡⚡
Main technical specifications
| MODEL | DDR-240B-24 | DDR-240B-48 | DDR-240C-24 | DDR-240C-48 | DDR-240D-24 | DDR-240D-48 | |||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DC output voltage | 24V | 48V | 24V | 48V | 24V | 48V | |||||||||||||||||||||||
| Nominal output current | 10A | 5A | 10A | 5A | 10A | 5A | |||||||||||||||||||||||
| Output current range | 0 ~ 10A | 0 ~ 5A | 0 ~ 10A | 0 ~ 5A | 0 ~ 10A | 0 ~ 5A | |||||||||||||||||||||||
| Nominal output power | 240W | ||||||||||||||||||||||||||||
| Continuous input voltage range | 16.8 ~ 33.6Vdc | 33.6 ~ 67.2Vdc | 67.2 ~ 154Vdc | ||||||||||||||||||||||||||
| Input voltage range 100ms | 14.4 ~ 16.8Vdc | 28.8 ~33.6Vdc | 66 ~ 67.2Vdc | ||||||||||||||||||||||||||
| Operating temperature | -40 ~ +70 °C | ||||||||||||||||||||||||||||
| Efficiency | 90% | 90% | 91% | 92% | 92% | 92.5% | |||||||||||||||||||||||
| PFC | NO | ||||||||||||||||||||||||||||
| Dimensions | 40x125.2x113.5mm | ||||||||||||||||||||||||||||
| For purchases and samples | CONTACT US | ||||||||||||||||||||||||||||
See also:
Download the Din Rail power supply catalogs in the attachments tab.
Data sheet
- Input VDC (Nominal)
- 16
24
32
48
65
110 - Output Regulation Type
- Constant Voltage / CV
- Output Voltage VDC
- 24
48 - Input Voltage VDC (Range)
- 16.8 ~ 33.6VDC
33.6 ~ 67.2VDC
67.2 ~ 154VDC - Input Voltage Volt
- 24
48 - Operating Temperature
- -40°C / +70°C
- Rating
- 453
- Power W
- 240
- PFC
- No
- Warranty
- 3 Years
- Mechanical Mounting Format
- Din Rail
- Efficiency
- 92.5%
- Dimensions
- 40 x 125 x 113.5 mm
- Output Current mA
- 5000
10000 - Output Current A
- 5
10 - Output Connection
- At Speed
- Certifications
- This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details.
UL - Applications
- DIN Panel
ITE does not translate to anything in English as it appears to be an abbreviation or acronym. The translation would depend on the context it is used in.
Industrial Automation - Product Family
- DDR stands for Deutsche Demokratische Republik, which translates to the German Democratic Republic (GDR).
