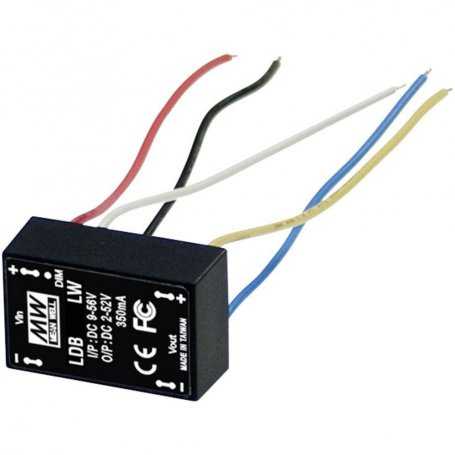

The product image may slightly differ as it is representative of the family and not the model.
LDB-300LW - Meanwell - DC-DC CC Converter - 12W 300mA - Input 12VDC/24VDC
Description
- LED Power Supply MeanWell
- Constant Current DC
- Power: 12W
- CC Output Voltage Range: 2~40Vdc
- Output Current: 300mA
- Input Voltage: 9~36Vdc
- PWM Dimming
- ON/OFF Remote Control
- Protections: Short Circuit / Overtemperature
- IP67
- Compact Body
- Dimensions: 31.8 x 20.3 x 12.2 mm
- Designed for LED Lighting
- Warranty: 3 years
- with Wires
Data sheet
- Dimming LED
- PWM
- Input VDC (Nominal)
- 12
24 - Output Regulation Type
- Constant Current / CC
- Input Voltage VDC (Range)
9~36VDC- Operating Temperature
- -40°C / +70°C
- Power W
- 12
- IP Protection Grade
- IP67
- Mechanical Mounting Format
- Closed Plastic Container
- Efficiency
- 90%
- Dimensions
- 31.8 x 20.3 x 12.2 mm
- Output Current mA
- 300
- Output Current A
- 0.3
- Certifications
- This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details.
- Applications
- LED Power Supply
- Product Family
- LDB
- LTT is an abbreviation or acronym that may not have a direct translation without context. It may stand for a company name, a tec
- 3
- MKP
- YES
- TK-CODE
- 14/0. [55.0.NO.]/LTT-3
- List Price
- 12.0
