SD-100D-5  SD-100D-5 - Convertitore DC/DC MeanWell - CV- 100W / 5V - Ingresso 110VDC  Mean Well  Convertitori DC/DC
zoom_out_map
chevron_left chevron_right

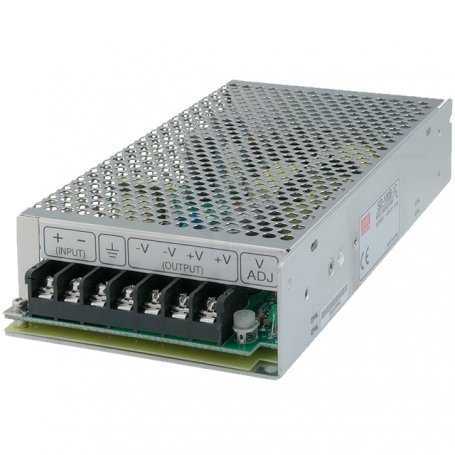

The product image may slightly differ as it is representative of the family and not the model.

Non disponibile - contattaci

SD-100D-5 - Meanwell - DC-DC Converter 100W 5V - Input 110VDC

€45.43 Tax excluded

€45.43 Tax excluded

block Non disponibile - contattaci

We will send you an email once the product becomes available. your email address will not be shared with anyone else.

Quantity Unit price Total price Buy
1 €45.43 €45.43
5 €44.52 €222.61
10 €43.61 €436.13
20 €42.70 €854.08
Description
  • DC-DC Converter Boxato MeanWell / Mod. SD-100D-5
  • Power 100W 5V 20A
  • Constant Voltage / CV
  • Vin 72~144VDC
Data sheet
Mean Well
SD-100D-5
New
7438645892262
Input VDC (Nominal)
110
Output Regulation Type
Regulated
Output Voltage VDC
5
Input Voltage VDC (Range)
72~144VDC
Operating Temperature
-10°C / +60°C
Power W
100
PFC
No
Output Voltage Nr.
1
IP Protection Grade
IP20
Warranty
2 Years
Mechanical Mounting Format
Boxed - Frame Assembly
Efficiency
76%
Dimensions
199x98x38mm
Output Current mA
20000
Output Current A
20
Input Connector
At Speed
Output Connection
At Speed
Certifications
This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details.
Applications
ITE does not translate to anything in English as it appears to be an abbreviation or acronym. The translation would depend on the context it is used in.
Industrial Automation
Product Family
Could you please provide more context or clarify what "SD" stands for? It could have multiple meanings depending on the context.
LTT is an abbreviation or acronym that may not have a direct translation without context. It may stand for a company name, a tec
ON REQUEST
MKP
NO
TK-CODE
0/0. [0.0.NO.]/LTT-ON REQUEST
List Price
56.6
