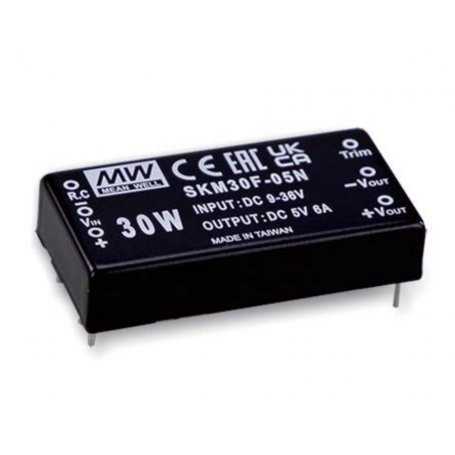

SKM30-N - Convertitore DC/DC Mean Well - 30W - 2''x1'' - ultrawide
zoom_out_map
chevron_left chevron_right

The product image may slightly differ as it is representative of the family and not the model.

Non disponibile - contattaci

SKM30-N - DC/DC Converter Mean Well - 30W - 2''x1'' - ultrawide

€3.50 SKM30F-05N
€3.50 SKM30F-12N
€3.50 SKM30F-15N
€3.50 SKM30G-05N
€3.50 SKM30G-12N
€3.50 SKM30G-15N

We will send you an email once the product becomes available. your email address will not be shared with anyone else.

Quantity Unit price Total price Buy
1 €3.50 €3.50
5 €3.43 €17.15
10 €3.36 €33.60
20 €3.29 €65.80
Description

Available models: SKM30F-05N, SKM30F-12N, SKM30F-15N, SKM30G-05N, SKM30G-12N, SKM30G-15N

The series SMK30-N offers converter models 30W DC/DC isolated and adjustable with housings DIP 2''x1''. All products offer international pin standards, efficiency at the89%, wide working temperature -40 - +90 °C, insulation tension 3KVDC Input/Output, in accordance with the BS EN/EN55032 Class A without additional components, protections against short circuit, overload, overvoltage, in addition to remote ON/OFF. The series features two versions with different input voltages. 9-36V and 18-75V 4:1 ultra wide, perfect for any type of system such as industrial control, telecommunications and the like.

Features:

  • DIP 2''x1'' with standard industrial pins
  • Input voltage 4:1 ultrawide
  • Working temperature -40 - +90°C
  • No minimum load required
  • In accordance with BS EN/EN55032 standard
  • Efficiency up to 89%
  • Protections against short circuit, overload, overvoltage
  • 3KVDC I/O Isolation
  • Remote ON/OFF and output trimming
  • 3 years warranty

Main technical specifications

MODEL INPUT VOLTAGE INPUT CURRENT OUTPUT
  INPUT VOLTAGE INPUT VOLTAGE (WITHOUT LOAD) INPUT VOLTAGE (FULL LOAD) OUTPUT VOLTAGE OUTPUT CURRENT EFFICIENCY CHARGE CAPACITOR
SKM30F-05N Nominal 12V, 24V (9-36V) 120mA 2941mA 5V 0-6000mA 85% 820 uF
SKM30F-12N 30mA 2907mA 12V 0-2500mA 87% 330 uF
SKM30F-15N 30mA 2874mA 15V 0-2000mA 87.5% 220 uF
The text "SKM30G-05N" appears to be a product model or code and does not require translation as it would remain the same in all languages. Nominal 24V, 48V (18-75V)

100mA 1453mA 5V 0-6000mA 86% 820 uF
SKM30G-12N 25mA 1437mA 12V 0-2500mA 87.5% 330 uF
SKM30G-15N 25mA 1420mA 15V 0-2000mA 88.5% 220 uF
Certification CE / EAC / UKCA
For purchases and sampling CONTACT US



Data sheet
Mean Well
SKM30F-05N
0402108708542
Insulation Voltage
3000
Input VDC (Nominal)
12
24
48
Output Regulation Type
Regulated
Output Voltage VDC
5
12
15
Input Voltage VDC (Range)
9~36VDC
18~75VDC
Operating Temperature
-40°C / +90°C
DC/DC Regulation
4:1
Power W
30
Input/Output Isolation
3000V
Warranty
3 Years
Mechanical Mounting Format
Printed Circuit Board - PCB
Efficiency
85%
86.0%
87%
87.5%
88.5%
Dimensions
50.8*25.4*11.2mm
DC/DC Pinout
2x1
Output Current mA
2000
2500
6000
Certifications
This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details.
