Controller DMX 5464.DMX.D4-E
zoom_out_map
chevron_left chevron_right

The product image may slightly differ as it is representative of the family and not the model.

Non disponibile - contattaci

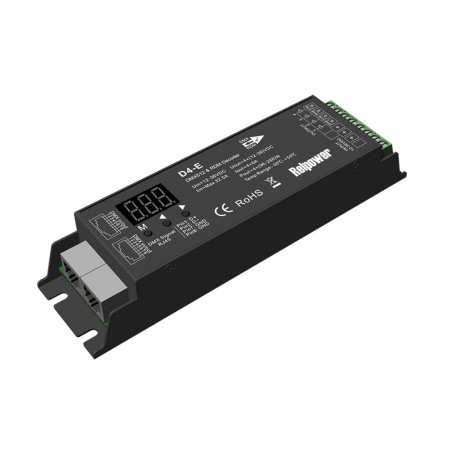

DMX Controller - 4 channels - input 12V 24V ~ 36V - 1152W Max

€21.42 5464.DMX.D4-E - 4x 8A / 12~36VDC
€25.20 PX24505 - 4x 6A / 12~24VDC

€21.42 Tax excluded

€21.42 Tax excluded

block Non disponibile - contattaci

We will send you an email once the product becomes available. your email address will not be shared with anyone else.

Quantity Unit price Total price Buy
1 €21.42 €21.42
5 €20.99 €104.96
10 €20.56 €205.63
20 €20.13 €402.70
Description

PX24505

  • PX24505
  • DMX Controller
  • Input: 12V~24V
  • Power: 576W Max
  • Current: 6A per 4 channels
  • Dimensions: 125*54*41mm(L*W*H)

DMX Controller Euchips PX24505

  • Compatible with DMX standards
  • Input: 12V~24V
  • Power: 288W at 12V / 576W at 24V
  • Channels: 1-4
  • 256 adjustable brightness levels
  • Output Current: 6A (4 channels) / 8A (3 channels)
  • Output Voltage: 12V~24Vdc
  • Size: 125 x 54 x 41 mm
  • Net Weight: 344g
  • Protections: Short Circuit, Overload, Overtemperature
  • Manual address setting via DMX mode switch
  • Address allocation via host computer in RDM mode

DMX Controller Rel Power 5464.DMX.D4-E

  • Compatible with DMX standards
  • Input: 12V~36VDC
  • Power: 384W at 12V / 768W at 24V / 1152W at 36V
  • Channels: 1-4
  • Output Current: 8A x 4 channels
  • Output Voltage: 12~36VDC
  • Dimensions: 175 x 46 x 32 mm
  • Reverse polarity protection
  • Address allocation via host computer in RDM mode
  • Digital numeric display and manual address setting via buttons in DMX mode
`
Data sheet
5464.DMX.D4-E
New
655994242129
Dimming LED
Sure, "DMX" is an abbreviation and does not need translation, as it is commonly known internationally, particularly in the context of entertainment and lighting technology.

If you need more context or additional text translated, please provide it!
Led Dimming (interface)
Sure, "DMX" is an abbreviation and does not need translation, as it is commonly known internationally, particularly in the context of entertainment and lighting technology.

If you need more context or additional text translated, please provide it!
Power Supply Type
Constant Voltage / CV
Type
DMX Controller
Number of Channels
4
Dimensions
175x46x32mm
Output Current Per Channel mA
6000
8000
Output Current Per Channel A
6
8
MKP
YES
TK-CODE
1/1. [0.0.NO.]/LTT-1
28/28. [0.0.NO.]/LTT-1
