The product image may slightly differ as it is representative of the family and not the model.
Relpower LED DIMMER - 2.4GHz RADIO FREQUENCY - FROM 3 TO 4 CHANNELS RGB-RGBW IN 12V~24V 288W MAX
Description
Dimmer for RGB / RGBW Led Rel Power with remote control, power up to 384 Watts in 12V and 24V input/output voltages
RelPower LED Dimmers
- The V3-M and V4-M dimmers allow extremely linear dimming, from 0 to 100% without flickering thanks to 4096 levels of brightness
- The V3-M and V4-M dimmers can be paired with RelPower RGB/RGBW 2.4GHz single or multi-zone remote controls
- Can be paired with up to 10 remote controls
- Automatic transmission function: the controller can resend the signal to other controllers within 30m
- Possibility of simultaneous operation of multiple controllers
RELPOWER VP RF CONTROLLER:
- Four-channel constant voltage socket input
- Usable with the RelPower RGB/RGBW 2.4GHz remote control

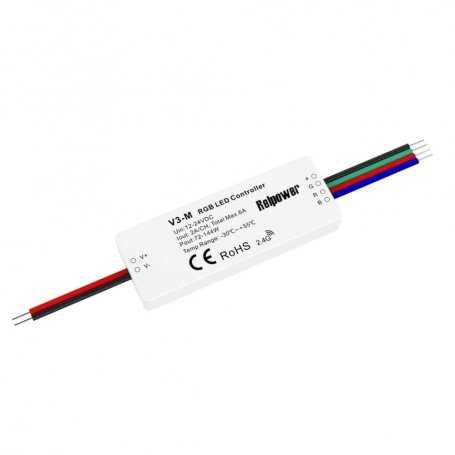

RELPOWER V3-M RF CONTROLLER:
- Mini RF LED RGB controller with constant voltage at 3 channels
- 2A per channel, usable with multi-color RGB LED strips
- Usable with the RelPower RGB 2.4GHz remote control
RELPOWER V4-M RF CONTROLLER:
- Mini RF LED RGBW controller with constant voltage at 4 channels
- 1.5A per channel, usable with multi-color RGBW LED strips
- Usable with the RelPower RGBW 2.4GHz remote control
| PRODUCT PHOTO |  |  |  |
|---|---|---|---|
| Product code | 5464.CON.V3-M | 5464.CON.V4-M | 5464.CON.VP |
| IN / OUT Voltage | 12-24 VDC | 12-24 VDC | 12-24 VDC |
| IN / OUT Current | 2A*3CH | 1.5A*4CH | 3A*4CH MAX 12A |
| Output power | 72W - 144W | 72W - 144W | 144W - 288W |
| Output type | constant voltage CV | constant voltage CV | constant voltage CV |
| Input signal | RF 2.4GHz | RF 2.4GHz | RF 2.4GHz |
| Control distance | 30m | 30m | 30m |
| Measurements | 64mm x 23.50mm x 8.50mm | 64mm x 23.50mm x 8.50mm | 114mm x 38mm x 20mm |
Data sheet
- Input VDC (Nominal)
- 12
24 - Led Dimming (interface)
- RF remote control
- Power Supply Type
- Constant Voltage / CV
- Type
- LED Dimmer
- Output Voltage VDC
- 12
24 - Operating Temperature
- -35°C / +55°C
- Power W
- 384
- Net Weight
- 220g
- Mechanical Mounting Format
- Closed Plastic Container
- Input Connector
- At Speed
- Output Connection
- At Speed
- TK-CODE
- 0/0. [0.0.NO.]/LTT-ON REQUEST
29/29. [0.0.NO.]/LTT-1
30/30. [0.0.NO.]/LTT-1
