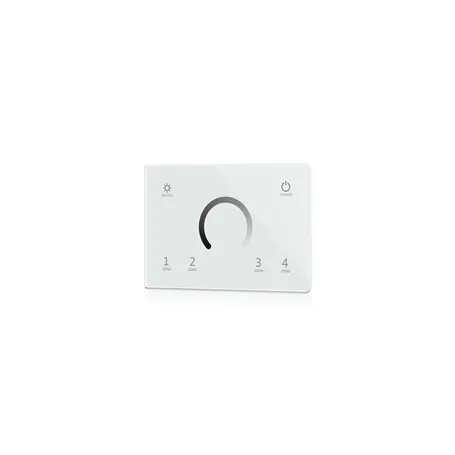

Relpower T11 - DMX512 Touch Panel for Monochrome Control - White
zoom_out_map
chevron_left chevron_right

The product image may slightly differ as it is representative of the family and not the model.

NewNon disponibile - contattaci

Relpower T11 - DMX512 Touch Panel for Monochrome Control - White

€41.16 Tax excluded

€41.16 Tax excluded

block Non disponibile - contattaci

We will send you an email once the product becomes available. your email address will not be shared with anyone else.

Quantity Unit price Total price Buy
1 €41.16 €41.16
5 €40.34 €201.68
10 €39.51 €395.14
20 €38.69 €773.81
Description

The T11 is a wall-mounted touch panel designed for controlling single-color lighting systems via the DMX512 protocol or 2.4GHz RF signal. Thanks to its touch-sensitive interface and compatibility with DMX and RF receivers, it offers precise and intuitive lighting control, both for single zones and for multiple synchronized zones.

Main Features

  • Touch panel for single color LED control
  • Compatible with the DMX512 protocol for the control of any DMX decoder
  • It can be used as a 2.4GHz RF remote control. for the control of Skydance LED receivers
  • Control up to 4 independent or synchronized zones
  • Brightness adjustment on 10 levels via touch wheel
  • Touch keys with sound feedback and LED indicator
  • Available in white or black glass

Technical Specifications

  • Model: T11
  • Type of control: Monochrome
  • Number of DMX channels: 1 channel per area
  • Exit signal: DMX512, RF 2.4GHz
  • Input voltage: 100-240VAC
  • Input current: Max 0.1A
  • Dimming range: 0-100% (256 levels)
  • RF control distance: 10m (without obstacles)
  • Degree of protection: IP20
  • Operating temperature: -30°C ~ +55°C
  • Maximum case temperature: +65°C
  • Dimensions: 135mm x 100mm x 58mm
  • Gross weight: 0.246 kg

Installation and Connection

  • Wall mount, compatible with European type flush boxes (86mm)
  • Available links:
    • AC input 100-240V
    • DMX output (positive, negative, and GND)
    • RF communication with compatible Skydance receivers
  • Possibility of synchronization between multiple panels and receivers within the same DMX or RF network.

Certifications

  • CE, EMC, LVD, RED
  • Safety and electromagnetic compatibility standards:
    • EN 55015, EN 55032, EN 55035, EN IEC 61547
    • ETSI EN 301 489-1, EN 301 489-3, EN 301 489-17
    • EN 62479, EN 50663, ETSI EN 300 440, ETSI EN 300 328
    • EN 60730-1

Package Contents

  • DMX512 T11 touch panel
  • User manual



Data sheet
REL Power
T11-IT-W
Dimming LED
Sure, "DMX" is an abbreviation and does not need translation, as it is commonly known internationally, particularly in the context of entertainment and lighting technology.

If you need more context or additional text translated, please provide it!
Led Dimming (interface)
It seems like "Touch" is already in English. Could you please provide the Italian text that you want translated into English?
Type
LED Dimmer
Input Voltage VAC
100~240VAC
Input Voltage VDC (Range)
Number of Channels
4
