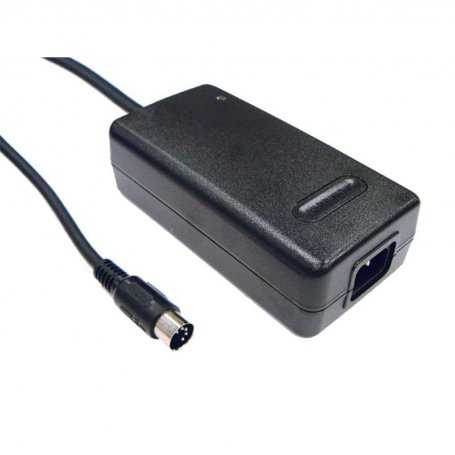

GP50A13D-R1B - Meanwell - Desktop Power Supply 50W 12V - Input 100-240 VAC
Description
- MeanWell Desktop Power Supply Mod. GP50A13D-R1B
- Industrial Adapter
- Input: 90~264VAC
- Power 50W
- Triple Output:
- 5V / 0~4A
- 12V / 0.3~2A
- -12V / 0.1~0.5A
- MeanWell Desktop Power Supply Mod. GP50A13D-R1B
- Industrial Adapter
- Input: 90~264VAC
- Power 28W
- Triple Output:
- 5V / 0~4A
- 12V / 0.3~2A
- -12V / 0.1~0.5A - AC 3pin Input
- R1B: Standard plug, with DIN 5pin
- Class I
- Energy efficiency: VI
- Protections:
Short circuit
Overload
Overvoltage - Plastic encapsulated
- Operating LED indicator
- Warranty: 3 years
Data sheet
- Output Regulation Type
- Constant Voltage / CV
- Output Voltage VDC
- 5
12 - Input Voltage VAC
- 90~264VAC
90~264VAC - Operating Temperature
- -4°F / +158°F
- Power W
- 50
- PFC
- No
- Output Voltage Nr.
- 1
- IP Protection Grade
- IP20
- Warranty
- 3 Years
- Mechanical Mounting Format
- Desktop
- Efficiency
- 84%
- Efficiency Level
- VI
- Dimensions
- 146 x 75.5 x 43 mm
- Output Current mA
- 500
1500
4000 - Output Current A
- 0.5
1.5
4 - Input Connector
- C14
- Output Connection
- DIN 5 Pin
- Isolation Class
- Class 1
- Certifications
- This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details.
UL - Applications
- ITE does not translate to anything in English as it appears to be an abbreviation or acronym. The translation would depend on the context it is used in.
- Input Voltage VAC (Nominal)
- 110
220 - Product Family
- GP50A1
- LTT is an abbreviation or acronym that may not have a direct translation without context. It may stand for a company name, a tec
- 3
- MKP
- YES
- TK-CODE
- 3/0. [9.1.NO.]/LTT-3
- List Price
- 63.6
