PPL90  PPL90 Alimentatore DESKTOP Phihong 90W  Phihong  Alimentatori esterni
zoom_out_map
chevron_left chevron_right

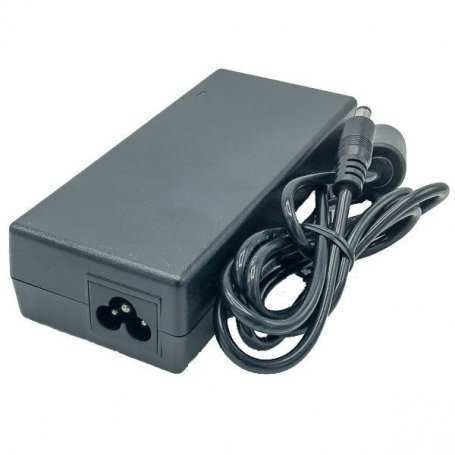

The product image may slightly differ as it is representative of the family and not the model.

Non disponibile - contattaci

PPL90 Desktop Power Supply Phihong 90W

€0.00 15 e Three-pole C6
€0.00 15 e Triple C14
€35.56 12 e Triple C14
€30.17 12 e Three-pole C6
€35.56 24 e Triple C14
€30.17 24 e Three-pole C6
€0.00 16 e Three-pole C6
€0.00 16 e Triple C14
€0.00 18 e Three-pole C6
€0.00 18 e Triple C14
€0.00 19 e Triple C14
€0.00 19 e Three-pole C6
€0.00 20 e Triple C14
€0.00 20 e Three-pole C6
€0.00 30 e Three-pole C6
€0.00 30 e Triple C14
€30.17 48 e Three-pole C6
€68.32 48 e Triple C14
€0.00 56 e Triple C14
€0.00 56 e Three-pole C6

€30.17 Tax excluded

€30.17 Tax excluded

block Non disponibile - contattaci

We will send you an email once the product becomes available. your email address will not be shared with anyone else.

Quantity Unit price Total price Buy
1 €30.17 €30.17
5 €29.57 €147.83
10 €28.96 €289.63
20 €28.36 €567.20
Description

Desktop power supplies Phihong PPL series, power 90 Watt in output voltages 12V, 15V, 16V, 18V, 19V, 20V, 24V, 30V, 48V and 56V

The Phihong DESKTOP PPL90 power supplies are highly reliable products certified worldwide, ideal for consumer electronics, networking, and all kinds of peripherals.

Main features:

  • Maximum reliability
  • DOE level VI certification
  • Plastic case without ventilation, splash-proof
  • Standard output connector 5.5 x 2.1 x 10mm center positive
  • Safe: equipped with protections against overvoltage, short circuit, and overload
  • Available with and without ground [[class]]
  • Efficiency up to [[efficiency]] in class VI
  • No-load consumption <0.077W
  • ErP/Ecodesign Directive 2009/125/EC
  • Regulation EU 2019/1782 Compliant
  • EU CoC Tier 2 Compliant
  • EN 55024/CISPR 24
  • Class B EMI
  • Input: [[input]]
  • Certifications: EN62368 This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details. UL
  • Dimensions: [[dimensions]]

Applications:

  • Networking
  • On-board computers and peripherals
  • Consumer electronics

Our rating:

  • Reliability
  • Price
  • Features
  • ⚡⚡⚡⚡⚡
  • ⚡⚡⚡⚡
  • ⚡⚡⚡⚡⚡

Main technical specifications

MODELPPL90x-120PPL90x-240PPL90x-480PPL90x-560
Output voltage 12V 24V 48V 56V
Nominal Output Current 7A 3.75A 1.88A

1.6A

Power (Nominal) 90 Watt
Dimmable NO
Max Efficiency 89.8% 90.2% 90.9% 91.1%
Input Voltage VAC
Input Connector C6, C8, C14
PFC NO
Dimensions 139x61x36 mm

See the datasheet for more details and technical specifications of models not listed in the table.

See also:

Download the Desktop Power Supply Catalogs in the attachments tab.

Data sheet
Phihong
PPL90M-120
New
7438645986152
Output Regulation Type
Constant Voltage / CV
Output Voltage VDC
12
15
16
18
19
20
24
30
48
56
Input Voltage VAC
90~264VAC
90~264VAC
Operating Temperature
0°C / +40°C
Rating
545
Power W
90
PFC
No
IP Protection Grade
Nobody
Mechanical Mounting Format
Desktop
Efficiency
91%
Dimensions
139x61x36 mm
Output Current mA
1600
1880
3000
3750
4500
4740
5000
5600
6000
7000
Output Current A
"5.1"
1.6
1.88
3
3.75
4.5
4.74
5.6
6
7
Input Connector
C6
C14
Output Connection
5.5x2.1
Isolation Class
Class 1
Class 2
Certifications
EN62368
This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details.
UL
Applications
ITE does not translate to anything in English as it appears to be an abbreviation or acronym. The translation would depend on the context it is used in.
Industrial Automation
Networking
Security
Input Voltage VAC (Nominal)
110
220
Product Family
PPL is an abbreviation that can stand for several things, depending on the context. Could you please provide more information or context for a more accurate translation?
TK-CODE
0/0. [0.0.NO.0]/LTT-ON REQUEST
0/0. [0.0.NO.0]/LTT-ON REQUEST
0/0. [0.0.NO.0]/LTT-ON REQUEST
0/0. [0.0.NO.0]/LTT-ON REQUEST
0/0. [0.0.NO.0]/LTT-ON REQUEST
0/0. [0.0.NO.0]/LTT-ON REQUEST
0/0. [0.0.NO.0]/LTT-ON REQUEST
0/0. [0.0.NO.0]/LTT-ON REQUEST
0/0. [0.0.NO.0]/LTT-ON REQUEST
0/0. [0.0.NO.0]/LTT-ON REQUEST
0/0. [0.0.NO.0]/LTT-ON REQUEST
0/0. [0.0.NO.0]/LTT-ON REQUEST
0/0. [0.0.NO.0]/LTT-ON REQUEST
0/0. [0.0.NO.0]/LTT-ON REQUEST
0/0. [0.0.NO.0]/LTT-ON REQUEST
0/0. [0.0.NO.0]/LTT-ON REQUEST
7/0. [0.0.NO.25]/LTT-15
