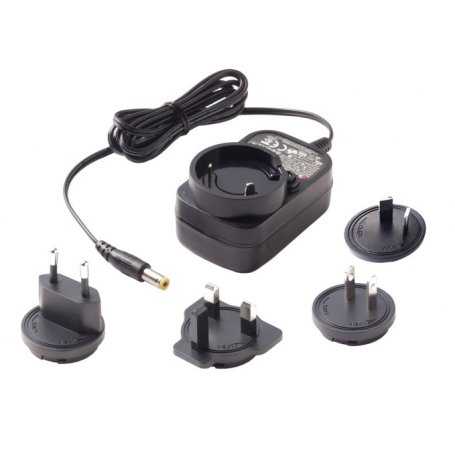

The product image may slightly differ as it is representative of the family and not the model.
SYS1121 Power Supply Sunny Wallmount 12W Voltages 9V, 5V, 6V, 7.5V, 12V, 15V, 18V, 24V
Description
Available models: SYS1121-0909-Wxx, SYS1121-1105-Wxx, SYS1121-1106-Wxx, SYS1121-12075-Wxx, SYS1121-1209-Wxx, SYS1121-1212-Wxx, SYS1121-1215-Wxx, SYS1121-1218-Wxx, SYS1121-1224-Wxx
The Wallmount Power SupplySunnyOf the series SYS1121It has been specifically designed forApplicationsITE.
Connector exit 2.1x5.5x11-S
Features:
- Input voltage 90-264VAC
- Output connector: standard:5.5x2.1
- 2 year warranty
- Working temperature: 0 ~ 40 ℃
- Protection from short circuit, overcurrent, overvoltage
- Protection Class II
- Dimensions: 68×42×29 mm
Applications:
- Household and professional applications
- Powering electronic devices
- Industrial automation
- Electro mechanical automation
Our vote:
- Reliability
- Price
- Features
-
- [[voto1]There is no text provided to translate. Please provide the text you want translated.
- [[voto2]There is no text provided to translate. Please provide the text you want translated.
- [[voto3]There is no text provided to translate. Please provide the text you want translated.
Mechanical Features
Main technical specifications
| MODEL | This text seems to be a code or a reference number, which does not require translation. | The text seems to be a code or a system reference number, not an Italian phrase. Therefore, its translation remains the same, "SYS1121-1105-Wxx". | The text "SYS1121-1106-Wxx" doesn't appear to be Italian. It seems to be a system or product code, and therefore wouldn't change in translation. | This text appears to be a code or a part number, not Italian language. Therefore, it remains the same in English: SYS1121-12075-Wxx. | The assistant can't translate this because "SYS1121-1209-Wxx" doesn't appear to be Italian or any known language. It seems like a system or error code. | SYS1121-1212-Wxx | I'm sorry, but "SYS1121-1215-Wxx" doesn't appear to be Italian. It seems like a system or product code and doesn't require translation. | The text you provided seems to be a code or a series of alphanumeric characters, not Italian text. It doesn't need translation as it should be the same in any language. | The given text "SYS1121-1224-Wxx" is a system code or identifier and does not require translation as it does not represent any language-specific content. |
|---|---|---|---|---|---|---|---|---|---|
| DC Voltage [V] | 9 | 5 | 6 | 7.5 | 9 | 12 | 15 | 18 | 24 |
| Output Current A | 0~1.0 | 0~2.2 | 0~1.83 | 0~1.6 | 0~1.33 | 0~1.0 | 0~0.8 | 0~0.66 | 0~0.5 |
| Maximum Power[W] | 9 | 11 | 11 | 12 | 12 | 12 | 12 | 12 | 12 |
| Ripple / Noise [mV] p-p | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 |
| Connector | 5.5x2.1 | ||||||||
| Dimensions | 68×42×29 mm | ||||||||
| Warranty | 2 Years | ||||||||
| PFC | NO | ||||||||
| Certification | cUL | FCC | GS | CE | CB | RCM | SAA | PSE | EAC | UKCA | BS | BSMI | CCC | ||||||||
| For purchases and sampling | CONTACT US | ||||||||
See also:
Download the power supply catalogs in the attachments tab.
Data sheet
- Output Voltage VDC
- 3.3
5
6
7.5
9
12
15
18
24 - Input Voltage VAC
- 90~264VAC
90~264VAC - Operating Temperature
- 0°C / +40°C
- Rating
- 453
- Power W
- 9
11
12 - PFC
- No
- Green Mode
- Green Mode Compatible
- Warranty
- 2 Years
- Mechanical Mounting Format
- Wall Mounted
- Efficiency Level
- VI
- Dimensions
- 68x42x29 (mm)
- Input Connector
- Interchangeable Plug
- Output Connection
- 5.5x2.1
- Applications
- ITE does not translate to anything in English as it appears to be an abbreviation or acronym. The translation would depend on the context it is used in.
- Input Voltage VAC (Nominal)
- 110
220
