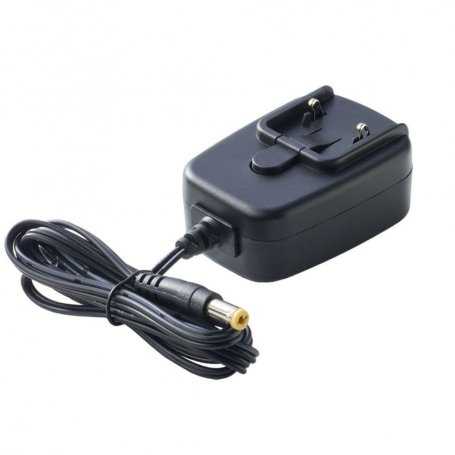

The product image may slightly differ as it is representative of the family and not the model.
-6%
SYS1561- Power Supply Sunny Wallmount - 10.5W~12W - Voltages 5V 5.35V 6V 12V
Description
The external wallmount power supply Sunny of the series SYS1561 has an input voltage of 90-264VAC, and output voltages of 5V 5.35V 6V 12V
The Wallmount power supply Sunny from the SYS1561 series has been specifically designed for ITE applications.
The cable length is 1.4 meters, output connector 5.5x2.1 / micro USB / 5C USB-C / USB inlet
Features:
- Input voltage 90-264VAC
- Output connector: standard: 5.5x2.1 mm / micro USB / 5C USB-C / USB inlet
- Green Mode Compatible
- 2-year warranty
- Working temperature: 0 ~ 40 ℃
- Protection from short circuit, overcurrent, overvoltage
- Class II protection
- Size: 65x45x30mm
Applications:
- Residential and professional applications
- Power supply for electronic devices
- Industrial automation
- Electro mechanical automation
Our rating:
- Reliability
- Price
- Features
-
- ⚡⚡⚡⚡
- ⚡⚡⚡⚡⚡
- ⚡⚡⚡

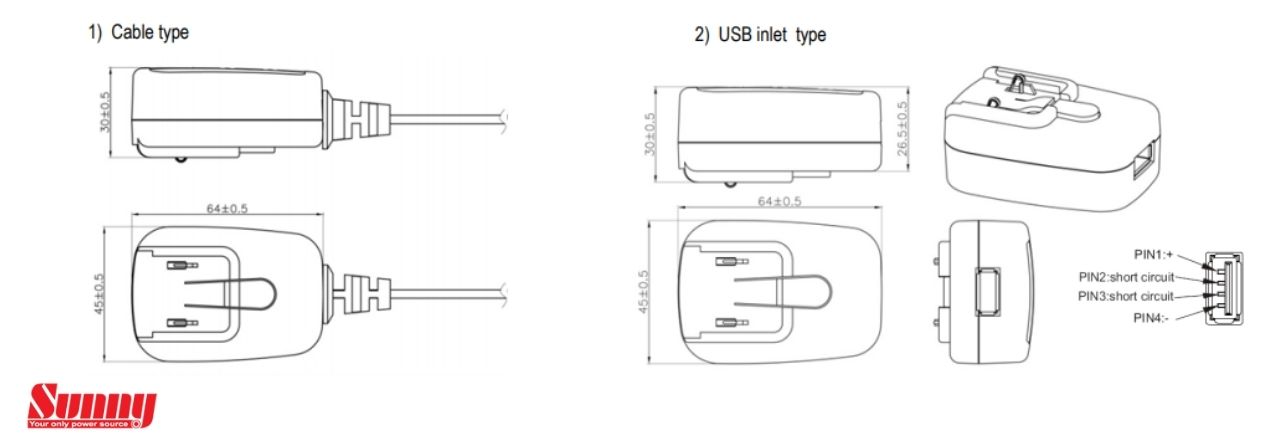

Mechanical Features
Main technical specifications
| MODEL | SYS1561-1105 | SYS1561-1105 | SYS1561-1105 | SYS1561-1105 | SYS1561-11054 | SYS1561-1006 | SYS1561-1212 | ||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DC Voltage [V] | 5 | 5 | 5 | 5 | 5.345 | 6 | 12 | ||||||||||||||||||||||||
| Output Current A | 0~2.1 | 0~2.1 | 0~2.1 | 0~2.1 | 0~2.0 | 0~1.66 | 0~1.0 | ||||||||||||||||||||||||
| Maximum Power [W] | 10.5 | 10.5 | 10.5 | 10.5 | 10.7 | 10 | 12 | ||||||||||||||||||||||||
| Ripple / Noise [mV] p-p | 200 | 200 | 200 | 200 | 200 | 200 | 200 | ||||||||||||||||||||||||
| Output connector | 5,5x2,1 | micro USB | 5C USB-C | USB inlet | 5,5x2,1 | 5,5x2,1 | 5,5x2,1 | ||||||||||||||||||||||||
| Warranty | 2 Years | ||||||||||||||||||||||||||||||
| PFC | NO | ||||||||||||||||||||||||||||||
| Dimensions | 65x45x30mm | ||||||||||||||||||||||||||||||
| Certification | cULus/GS/CB/CE/FCC/BSMI/PSE/SAA/RCM/EAC/CCC/PSB (1005,1212)/S-MARK (1105)/KC (5V only) | ||||||||||||||||||||||||||||||
| For purchases and samples | CONTACT US | ||||||||||||||||||||||||||||||
See also:
Download the power supply catalogs in the attachments tab.
Data sheet
- Output Voltage VDC
- 5
5.35
6
12 - Input Voltage VAC
- 90~264VAC
90~264VAC - Operating Temperature
- 0°C / +40°C
- Rating
- 453
- Power W
- 10.5
12 - PFC
- No
- Green Mode
- Green Mode Compatible
- Warranty
- 2 Years
- Mechanical Mounting Format
- Wall Mounted
- Efficiency Level
- VI
- Dimensions
- 65x45x30mm
- Output Current A
- 1
1.66
2
2.1 - Input Connector
- Interchangeable Plug
- Output Connection
- 5.5x2.1
Micro USB
USB Type C - Certifications
- FCC
It appears that "CCC" does not provide enough context for an accurate translation. Could you please provide more information or a complete sentence?
Sure, but could you please provide the full text that you would like translated?
This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details. - Applications
- ITE does not translate to anything in English as it appears to be an abbreviation or acronym. The translation would depend on the context it is used in.
- Input Voltage VAC (Nominal)
- 110
220 - Product Family
- It looks like "SYS1561" is a code or identifier rather than a text in Italian. Therefore, it might not require translation. If you have any additional text or context, please provide it so I can assist you better.
