The product image may slightly differ as it is representative of the family and not the model.
-6%

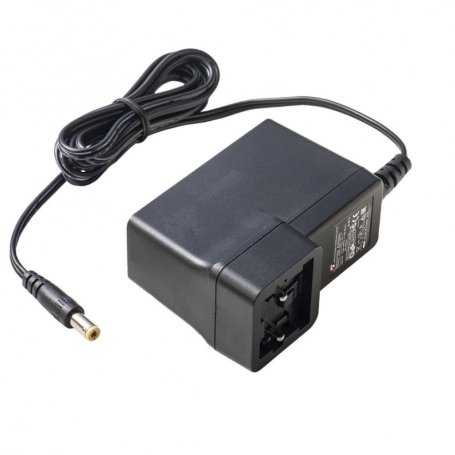

SYS1588 - Power Adapter Sunny Wallmount - 30W~40W - Voltages 5V 9V 12V 15V 18V 24V 48V
Description
The external Wallmount Sunny power supply from the series SYS1588 has an input voltage of 90-264V, output voltage of 5V 9V 12V 15V 18V 24V 48V, power of 30W or 40W.
The Wallmount power supply Sunny from the SYS1588 series has been specifically designed for applications such as: industrial control and ITE applications.
The cable length is 1.4 meters, output connector 5.5x2.1
Features:
- Input voltage 90-264VAC
- Regulated output with low ripple noise
- Output connector: standard: 5.5x2.1
- Green Mode Compatible
- 2 years warranty
- Working temperature: 0 ~ 40 ℃
- Overcurrent, short circuit, overvoltage protection
- Protection class II
- Size: 80x58x39mm
Applications:
- Home and professional applications
- Power supply for electronic devices
- Industrial automation
- Electromechanical automation
Our rating:
- Reliability
- Price
- Features
-
- ⚡⚡⚡⚡
- ⚡⚡⚡⚡⚡
- ⚡⚡⚡

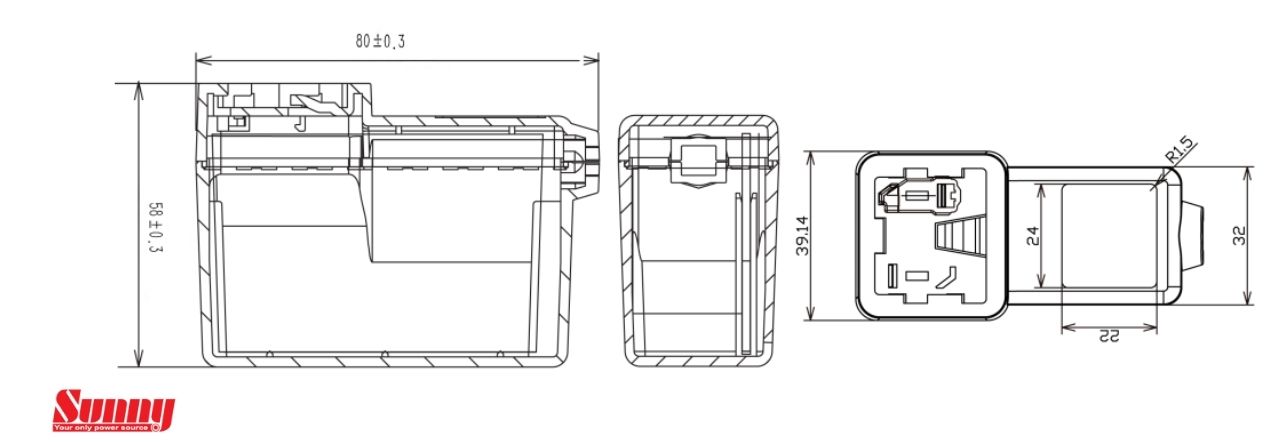

Mechanical Features
-min.jpg)
Main technical specifications
| MODEL | SYS1588-3005 | SYS1588-3609 | SYS1588-4012 | SYS1588-4015 | SYS1588-4018 | SYS1588-4024 | SYS1588-4048 | ||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DC Voltage [V] | 5 | 9 | 12 | 15 | 18 | 24 | 48 | ||||||||||||||||||||||||
| Output Current A | 0~6 | 0~4 | 0~3.3 | 0~2.6 | 0~2.2 | 0~1.6 | 0~0.8 | ||||||||||||||||||||||||
| Maximum Power [W] | 30 | 36 | 40 | 40 | 40 | 40 | 40 | ||||||||||||||||||||||||
| Ripple / Noise [mV] p-p | 120 | 120 | 200 | 200 | 240 | 240 | 400 | ||||||||||||||||||||||||
| Output connector | 5.5x2.1 | ||||||||||||||||||||||||||||||
| Warranty | 2 Years | ||||||||||||||||||||||||||||||
| PFC | NO | ||||||||||||||||||||||||||||||
| Dimensions | 80x58x39mm | ||||||||||||||||||||||||||||||
| Certification | CE/GS/cTUVus/FCC/RCM/PSE/EAC/CB | ||||||||||||||||||||||||||||||
| For purchases and samples | CONTACT US | ||||||||||||||||||||||||||||||
See also:
Download the power supply catalogs in the attachments tab.
Data sheet
- Output Voltage VDC
- 5
9
12
15
18
24
48 - Input Voltage VAC
- 90~264VAC
90~264VAC - Operating Temperature
- 0°C / +40°C
- Rating
- 453
- Power W
- 30
40 - PFC
- No
- Green Mode
- Green Mode Compatible
- Warranty
- 2 Years
- Efficiency Level
- VI
- Dimensions
- 80x58x39mm
- Output Current A
- 0.8
1.6
2.2
2.6
3.3
4
6 - Input Connector
- Interchangeable Plug
- Output Connection
- 5.5x2.1
- Certifications
- FCC
Sure, but could you please provide the full text that you would like translated?
This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details. - Applications
- ITE does not translate to anything in English as it appears to be an abbreviation or acronym. The translation would depend on the context it is used in.
- Input Voltage VAC (Nominal)
- 110
220 - Product Family
- It appears that "SYS1588" is a code or identifier rather than a text in Italian. If you have any text that you need translated, please provide it, and I'll be happy to assist!
