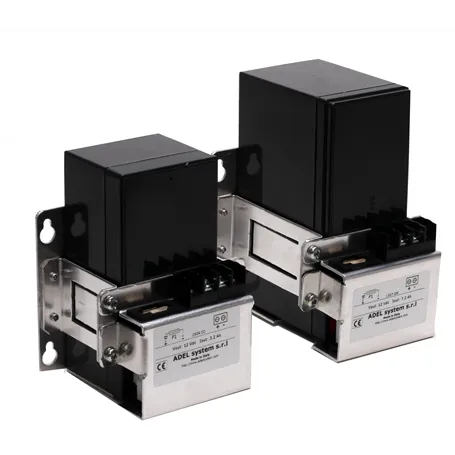

The product image may slightly differ as it is representative of the family and not the model.
BATT 12V - Battery Adelsystem with panel support / DIN guide - 12V - 3.2Ah - 7.2Ah
Description
Available models: BATT 123, BATT 123DIN, BATT 127, BATT 127DIN
Battery modules for the DC-UPS "All In One" line at 12 Vdc (one battery). Sealed lead battery protected by a blade fuse.
Easy connection to the power module via screw terminal.
All models are available in both the panel-mounting and DIN rail-mounting version.
Features:
- Single output 12 VDC
- Protections: fuse
- Short circuit protection
- Connection with screw terminals
- IP20 protection
- Panel mounting / DIN rail
Our rating:
- Reliability
- Price
- Features
-
- ⚡⚡⚡⚡
- ⚡⚡⚡⚡⚡
- ⚡⚡⚡
Main technical specifications
| MODEL | BATT 123 | BATT 123DIN | BATT 127 | BATT 127DIN |
|---|---|---|---|---|
| End of charge voltage | 13.8 Vdc (20°C) ; 13.8 (30°C); 13.8 Vdc (40°C) |
|||
| Max. charging current | 0.8A | 1.7A | ||
| Blade fuse protection | 25 A | |||
| Working Environment Temperature |
+5 ÷ +40 °C | |||
| Self discharge | 20 °C 15% of the charge per month | |||
| Dimensions | 159*97*38mm |
159*153*123mm |
||
| For purchases and samples | CONTACT US | |||
Discover more information about ADELSYSTEM
Data sheet
- Output Voltage VDC
- 12
- Operating Temperature
- +5° - +40°C
- Rating
- 453
- IP Protection Grade
- IP20
- Mechanical Mounting Format
- Din Rail
Panel Mount - Dimensions
- 105x136x90mm, 159x97x38mm
- Output Current mA
- 800
1700 - Output Current A
- 0.8
1.7 - Certifications
- This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details.
- Battery Voltage (Nominal) VDC
- 12
