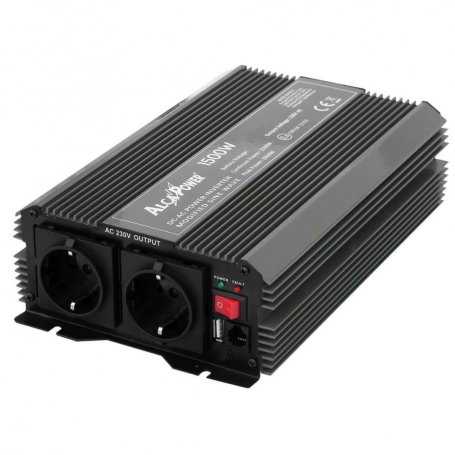

IRS1500 - Alcapower - Modified Sine Wave Inverter 1500W - Out 220 VAC
Inverter Alcapower series IRS1500, power 1500 Watt in input voltages of 12V and 24V
ALCAPOWER IRS1500 Inverter(Replaces models AP12-1500GP and AP24-1500GP)
The 1500 Watt DC AC power inverter model IRS1500 of Alcapower It allows you to have a standard 220 VAC power outlet in places where normal electrical lines are not present, transforming a continuous 12V or 24V DC voltage, typically provided by a battery or even solar panels, into an alternating 220V AC 50Hz voltage suitable for powering a wide range of electrical and electronic devices.
The inverter IRS1500 of Alcapower It is therefore able to power all devices that absorb up to a maximum of 1500W (about 750W for devices that have a motor or in any case a high absorption / spike at ignition) [read our Guide to Choosing Inverters for clarification.
Choose the power inverter IRS1500 of Alcapower, a product built with high-quality components, equipped with efficient protection circuits and with a assistance network, warranty and after sales ITALIAN.
To ensure its proper functioning, it is necessary to install it according to the rules of the art.
Main features:
- Entrance: screw terminals
- Output: 2 schuko sockets
- Taken for remote control
- Continuous power: 1500W
- Maximum peak power: 3000W
- Modified Sine Wave
- Input voltage 12VDC (11-15VDC)
- Input voltage 24VDC (22-30 VDC)
- Output voltage: Output: 230V AC 50Hz; USB 5V 500mA
- Low battery alarm: 10.5V DC ± 0.3V (IRS1500-12)
- Low battery alarm: 21V DC ± 0.6V (IRS1500-24)
- Shutdown for overvoltage: 15V-16V DC(IRS1500-12)
- Overvoltage shutdown: 30V-32V DC(IRS1500-24)
- Vacuum absorption:
- DC input fuse: 6 of 30A (IRS1500-12)
- DC input fuse: 6 of 15A(IRS1500-24)
- Dimensions: 260x165x70 mm
- Weight: approximately 2295 gr
- Alarm and automatic shutdown for low battery, overvoltage, short circuit and overheating.
- Input protections: Low voltage, Overvoltage, Polarity reversal and temporary short circuit.
- Fuses from 6 to 30A
- CE Approval
- Remote control ignition available (optional): RC12V-S / RC24V-S Code
Applications:
- Camper
- Automotive
- Boats
- Photovoltaic
Our vote:
- Reliability
- Price
- Characteristics
- [[voto1]You didn't provide any text to translate. Please try again.
- [[voto2]You didn't provide any text to translate. Please try again.
- [[voto3]You didn't provide any text to translate. Please try again.
Main technical specifications
| MODEL | IRS1500-12 | IRS1500-24 | |||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Input Voltage | 11 ~ 15VDC | 22 ~ 30VDC | |||||||||||||||||||||||
| Nominal Output Voltage | 230VAC ±10% | ||||||||||||||||||||||||
| Power (Nominal) | [[w]Watt | ||||||||||||||||||||||||
| Starting power | 3000Watt | ||||||||||||||||||||||||
| Max Efficiency | 80% | ||||||||||||||||||||||||
| Working temperature | From 5°C to 35°C | ||||||||||||||||||||||||
| Vacuum absorption | |||||||||||||||||||||||||
| Dimensions | [[dimensioni]You didn't provide any text to translate. Please try again. | ||||||||||||||||||||||||
| For purchases and sampling | CONTACT US | ||||||||||||||||||||||||
See also:
Download the inverter catalogs in the attachments tab.
- Input VDC (Nominal)
- 12
24 - Output Voltage VAC
- 220 VAC
- Input Voltage Volt
- 12
24 - Operating Temperature
- +5°C / +35°C
- Rating
- 454
- Power W
- 1500
- PFC
- No
- Parallelizable
- No
- Sinusoidal Waveform
- Modified Square Wave
- Output Voltage Nr.
- 2
- Warranty
- 1 Year
- Mechanical Mounting Format
- Boxed - Frame Assembly
- Efficiency
- 80%
- Dimensions
- 260x165x70mm
- Input Connector
- At Speed
- Output Connection
- At Speed
Schuko - Certifications
- This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details.
- Applications
- Industrial Automation
- Product Family
- IRS
