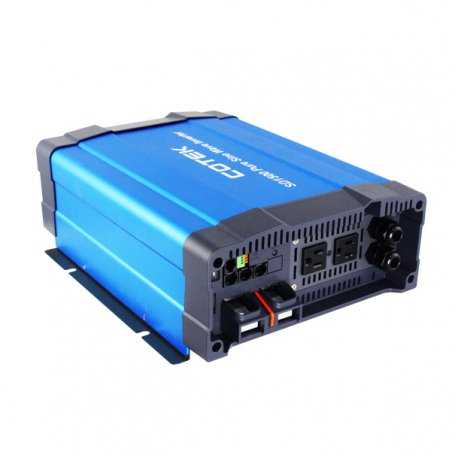

SD-1500-224 Cotek 1500W Inverter - 24V In 220 VAC Pure Sine Wave Out Transfer Switch STS
Description
- INVERTER COTEK
- Power: 1500W
- Pure Sine Wave THD<3%
- Input Voltage: 24VDC
- Output Voltage: 220VAC (50/60Hz)
- Dimensions: 283 x 128 x 351 mm
Features:
- Pure Sine Wave
- Selectable Output Voltage and Frequency
- Optional STS Module - Transfer Time less than 4ms
- RS-232 Interface
- Selectable Output Voltage and Energy Saving Mode via DIP switch or remote control
- 1Ф3W / 3Ф4W for multiple industrial applications
- Thermostatically Controlled Fan
- Built-in AC Switch and Switch
- Fully Isolated Input and Output Connections
- Selectable Output Frequency 50 / 60Hz via DIP switch
- Selectable Output Voltage and Energy Saving Mode
- Input Protections: Polarity Reversal (Fuse) / Undervoltage / Overvoltage
- Output Protections: Short Circuit / Overheating / Overload / Overvoltage
- Certifications: E13 / CE / UL / FCC
For any doubts, read our Inverter Selection Guide!
Data sheet
- Input VDC (Nominal)
- 24
- Output Voltage VAC
- 220 VAC
- Input Voltage VDC (Range)
- 24V
- Input Voltage Volt
- 24
- Operating Temperature
- -4°F / +140°F
- Power W
- 1500
- PFC
- No
- Net Weight
- 5.5 kg
- Parallelizable
- Comparable
- Sinusoidal Waveform
- Pure Sinusoidal Wave
- Output Voltage Nr.
- 1
- Warranty
- 2 Years
- Mechanical Mounting Format
- Boxed - Frame Assembly
- Efficiency
- 88%
- Dimensions
- 283 x 128 x 351 mm
- Input Connector
- Cable/Plug
- Output Connection
- Cable/Plug
- Isolation Class
- Isolated
- Certifications
This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details.
UL- Bypass Switch
- Interruttore di Trasferimento
- Applications
- Industrial Automation
- LTT is an abbreviation or acronym that may not have a direct translation without context. It may stand for a company name, a tec
- ON REQUEST
- MKP
- NO
- TK-CODE
- 0/0. [0.0.NO.]/LTT-ON REQUEST
- List Price
- 1009.0
