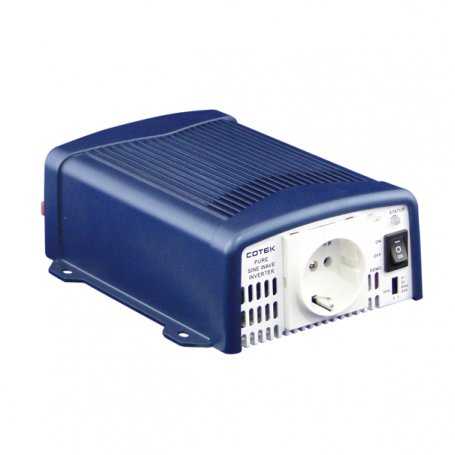

The product image may slightly differ as it is representative of the family and not the model.

Non disponibile - contattaci

SE350-224 - Cotek 350W Inverter - In 24V Out 220 VAC Pure Sine Wave

€162.82 Tax excluded

€162.82 Tax excluded

block Non disponibile - contattaci

We will send you an email once the product becomes available. your email address will not be shared with anyone else.

Quantity Unit price Total price Buy
1 €162.82 €162.82
5 €159.56 €797.82
10 €156.31 €1,563.07
20 €153.05 €3,061.02
Description
  • INVERTER COTEK
  • Power: 350W
  • Pure Sine Wave THD<3%
  • Input Voltage: 24VDC
  • Output Voltage: 220VAC (50/60Hz)
  • Dimensions: 150 x 68 x 187 mm

Features:

  • Pure Sine Wave
  • Remote ON/OFF control
  • Thermoregulated fan
  • Fully isolated input and output connections
  • Selectable output frequency 50 / 60Hz via DIP switch
  • Selectable Output Voltage and Energy Saving Mode
  • Input Protections: Polarity Reversal (Fuse) / Undervoltage / Overvoltage
  • Output Protections: Short Circuit / Overheating / Overload
  • Energy Saving <2W
  • Certifications: E13 / CE
Attachments
Data sheet
SE350-224
7438645981829
Input VDC (Nominal)
24
Output Voltage VAC
220 VAC
Input Voltage VDC (Range)
Input Voltage Volt
24
Operating Temperature
-4°F / +104°F
Power W
350
PFC
No
Net Weight
Parallelizable
Sinusoidal Waveform
Pure Sinusoidal Wave
Output Voltage Nr.
1
Warranty
2 Years
Mechanical Mounting Format
Boxed - Frame Assembly
Efficiency
90%
Dimensions
Input Connector
Cable/Plug
Output Connection
Isolation Class
Isolated
Certifications
This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details.
Applications
Industrial Automation
LTT is an abbreviation or acronym that may not have a direct translation without context. It may stand for a company name, a tec
ON REQUEST
MKP
NO
TK-CODE
0/0. [0.0.NO.]/LTT-ON REQUEST
List Price
