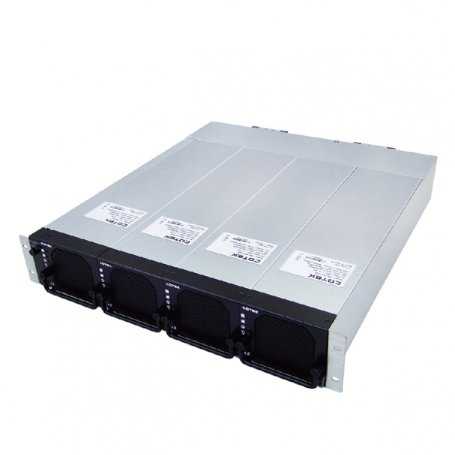

SR-1600-224  SR-1600-224 - Inverter Cotek 1600W - In 24V Out 220 VAC Onda Sinusoidale Pura - Transfer Switch STS - Rack 19"  ...
zoom_out_map
chevron_left chevron_right

The product image may slightly differ as it is representative of the family and not the model.

Non disponibile - contattaci

SR-1600 PLUS Cotek Inverter 1600W In 24V/48V Out 220 VAC Pure Sine Wave Transfer Switch STS Rack 19"

€0.00 SR-1600 PLUS-224
€0.00 SR-1600 PLUS-248

€0.00 Tax excluded

€0.00 Tax excluded

block Non disponibile - contattaci

We will send you an email once the product becomes available. your email address will not be shared with anyone else.

Quantity Unit price Total price Buy
1 €0.00 €0.00
5 €0.00 €0.00
10 €0.00 €0.00
20 €0.00 €0.00
Description
  • COTEK INVERTER
  • Power: 1600W
  • Pure Sine Wave THD
  • Input Voltage: 24VDC - 48VDC
  • Output Voltage: 220VAC (50/60Hz)
  • Module Size: 105 x 83 x 410 mm
  • Container Size: 446 x 85 x 509 mm

Features:

  • Hot Swap module with LED indicator
  • Standard 19" 2U Rack Unit
  • Zero transfer time
  • AC / DC selectable mode
  • Efficiency
  • Dual Input (AC & DC)
  • Connection up to 32 modules (up to 51.2KW)
  • Removable ventilation module for simplified maintenance
  • Input Protections: Polarity Inversion / Undervoltage / Overvoltage
  • Output Protections: Short Circuit / Overheating
  • AC Input Range: 75~132VAC (110VAC) / 150~265VAC (220VAC)
  • Certifications: CE / FCC

For any doubts, read our Inverter Selection Guide!

Data sheet
SR-1600 PLUS-224
Input VDC (Nominal)
24
48
Output Voltage VAC
220 VAC
Input Voltage Volt
24
48
Operating Temperature
-25°C / +40°C
Power W
1600
PFC
No
Net Weight
6.5 kg
Parallelizable
No
Sinusoidal Waveform
Pure Sinusoidal Wave
Output Voltage Nr.
1
Warranty
2 Years
Mechanical Mounting Format
19" Rack
Efficiency
96%
Dimensions
446 x 85 x 509 mm
Input Connector
At Speed
Output Connection
At Speed
Isolation Class
Isolated
Certifications
This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details.
Bypass Switch
Interruttore di Trasferimento
Applications
Industrial Automation
LTT is an abbreviation or acronym that may not have a direct translation without context. It may stand for a company name, a tec
ON REQUEST
MKP
NO
TK-CODE
0/0. [0.0.NO.]/LTT-ON REQUEST
