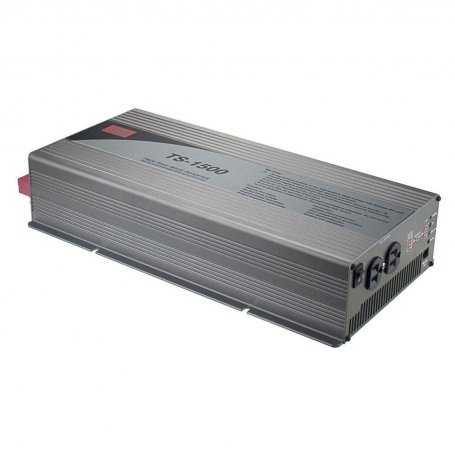

The product image may slightly differ as it is representative of the family and not the model.
TS-1500-224B - MeanWell - Pure Sine Wave Inverter 1500W - In 24V Out 220 VAC
Description
- MeanWell Inverter
- DC Input: 24V
- Power: 1500W
Maximum Power: 3000W - Output: 230VAC
- Pure Sine Wave
- MeanWell Inverter
- DC Input: 24V
- Power: 1500W
Maximum Power: 3000W - Output: 230VAC
- Pure Sine Wave
- Dimensions: 420 x 220 x 88 mm
- Switch ON/OFF
- Protections: Overload / Overheating / Reverse polarity /
- Overvoltage / Battery Low Alarm / Battery Low shutdown / Short circuit
- Warranty: 3 years
Data sheet
- Input VDC (Nominal)
- 24
- Output Voltage VAC
- 220 VAC
- Input Voltage VDC (Range)
- 24V
- Input Voltage Volt
- 24
- Operating Temperature
- 0°C / +40°C
- Power W
- 1500
- PFC
- No
- Net Weight
- 6.81 kg
- Parallelizable
- No
- Sinusoidal Waveform
- Pure Sinusoidal Wave
- Output Voltage Nr.
- 1
- Warranty
- 3 Years
- Mechanical Mounting Format
- Boxed - Frame Assembly
- Efficiency
- 90%
- Dimensions
- 420 x 220 x 88 mm
- Input Connector
- Cable/Plug
- Output Connection
- Cable/Plug
- Certifications
- This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details.
- Applications
- Industrial Automation
- LTT is an abbreviation or acronym that may not have a direct translation without context. It may stand for a company name, a tec
- 3
- MKP
- YES
- TK-CODE
- 1/0. [2.0.NO.]/LTT-3
- List Price
- 710.0
