TS-200-248B  TS-200-248B - Inverter MeanWell 200W - In 48V Out 220 VAC Onda Sinusoidale Pura  Mean Well
zoom_out_map
chevron_left chevron_right

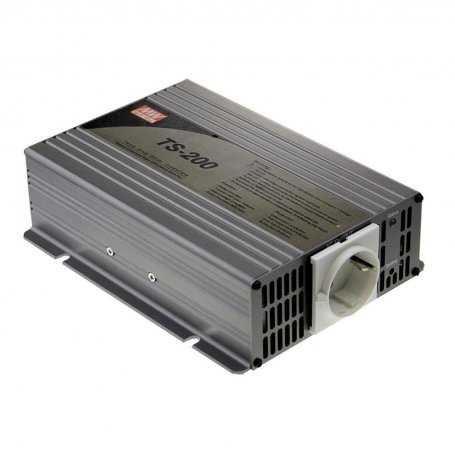

The product image may slightly differ as it is representative of the family and not the model.

Non disponibile - contattaci

TS-200-248B - MeanWell - Pure Sine Wave 200W Inverter - 48V In 220 VAC

€175.91 Tax excluded

€175.91 Tax excluded

block Non disponibile - contattaci

We will send you an email once the product becomes available. your email address will not be shared with anyone else.

Quantity Unit price Total price Buy
1 €176.54 €176.54
5 €173.01 €865.05
10 €169.48 €1,694.78
20 €165.95 €3,318.95
Description

End-Of-Life Model, replaced by NTS-300

  • MeanWell Inverter
  • DC Input: 48V
  • Power: 200W
    Maximum Power: 400W
  • Output: 230VAC
  • Pure Sine Wave
  • MeanWell Inverter
  • DC Input: 48V
  • Power: 200W
    Maximum Power: 400W
  • Output: 230VAC
  • Pure Sine Wave

  • Dimensions: 205 x 158 x 59 mm
  • Switch ON/OFF
  • Protections: Overload / Overheating / Reverse Polarity / Overvoltage / Battery Low Alarm / Battery Low Shutdown / Short Circuit
  • Warranty: 3 years
Data sheet
Mean Well
TS-200-248B
New
0402108700007
Input VDC (Nominal)
48
Output Voltage VAC
220 VAC
Input Voltage VDC (Range)
48V
Input Voltage Volt
48
Operating Temperature
0°C / +40°C
Power W
200
PFC
No
Net Weight
1.63 kg
Parallelizable
No
Sinusoidal Waveform
Pure Sinusoidal Wave
Output Voltage Nr.
1
Warranty
3 Years
Mechanical Mounting Format
Boxed - Frame Assembly
Efficiency
87.5
Dimensions
205 x 158 x 59 mm
Input Connector
Cable/Plug
Output Connection
Cable/Plug
Certifications
This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details.
Applications
Industrial Automation
LTT is an abbreviation or acronym that may not have a direct translation without context. It may stand for a company name, a tec
ON REQUEST
MKP
NO
TK-CODE
3/0. [11.0.NO.]/LTT-3
List Price
202.2
