TS-700-248B  TS-700-248B - Inverter MeanWell 700W - In 48V Out 220 VAC Onda Sinusoidale Pura  Mean Well
zoom_out_map
chevron_left chevron_right

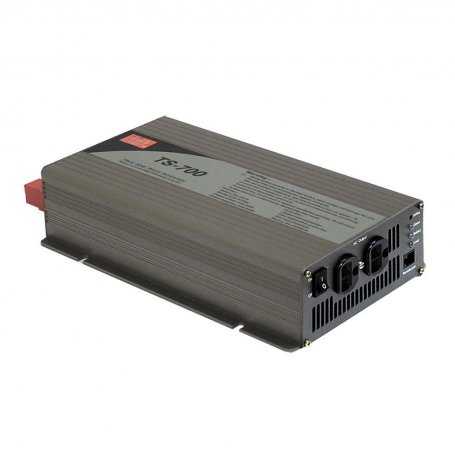

The product image may slightly differ as it is representative of the family and not the model.

Non disponibile - contattaci

TS-700-248B - MeanWell - Pure Sine Wave Inverter 700W - In 48V Out 220 VAC

€377.30 Tax excluded

€377.30 Tax excluded

block Non disponibile - contattaci

We will send you an email once the product becomes available. your email address will not be shared with anyone else.

Quantity Unit price Total price Buy
1 €377.30 €377.30
5 €369.75 €1,848.77
10 €362.21 €3,622.08
20 €354.66 €7,093.24
Description

End-Of-Life Model, replaced by NTS-750

  • MeanWell Inverter
  • DC Input: 48V
  • Power: 700W
    Maximum Power: 1400W
  • Output: 230VAC
  • Pure Sine Wave
  • MeanWell Inverter
  • DC Input: 48V
  • Power: 700W
    Maximum Power: 1400W
  • Output: 230VAC
  • Pure Sine Wave
  • Built-in fan
  • ON/OFF control function
  • Advanced digital control by Micropocessor
  • Dimensions: 295x184x70 mm
Data sheet
Mean Well
TS-700-248B
New
5425657493473
Input VDC (Nominal)
48
Output Voltage VAC
220 VAC
Input Voltage VDC (Range)
48V
Input Voltage Volt
48
Operating Temperature
0°C / +40°C
Power W
700
PFC
No
Net Weight
3.8 kg
Parallelizable
No
Sinusoidal Waveform
Pure Sinusoidal Wave
Output Voltage Nr.
1
Warranty
3 Years
Mechanical Mounting Format
Boxed - Frame Assembly
Efficiency
91%
Dimensions
295 x 184 x 70 mm
Input Connector
Cable/Plug
Output Connection
Cable/Plug
Certifications
This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details.
Applications
Industrial Automation
LTT is an abbreviation or acronym that may not have a direct translation without context. It may stand for a company name, a tec
ON REQUEST
MKP
YES
TK-CODE
0/0. [0.0.NO.]/LTT-ON REQUEST
List Price
438.9
