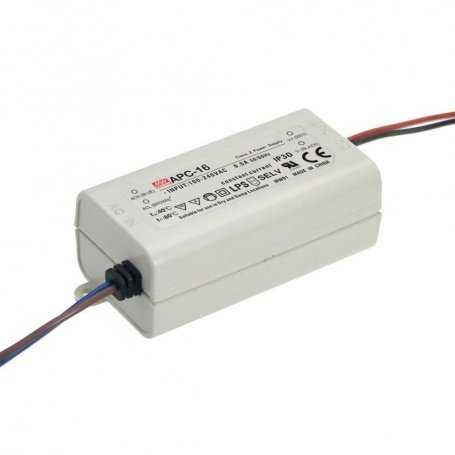

The product image may slightly differ as it is representative of the family and not the model.
APC-16 MeanWell LED Power Supply 16W Constant Current DC IP42 Currents 350mA . 700 mA
Description
Power supplies for Led Mean Well series APC-16, power 16 Watt in output currents of 350, 500 and 700 mA.
The LED power supplies Mean Well from the APC-16 series are entry-level products, with a 2-year warranty, protected by a sturdy plastic structure.
APC-16-350 / APC-16-500 / APC-16-700 are perfect for powering low-power spotlights or led strips (up to 12 Watts) at constant current.
Main Features:
- Economical and reliable
- Supplied pre-wired with both input and output power cables.
- Safe: equipped with protections from overvoltage, short-circuit and overload
- [[class]] insulation class (without ground)
- Fully insulated plastic case
- Quiet: No fans
- Warranty [[warranty]]
- Efficiency up to [[efficiency]]
- Protection IP42
- [[adjustment]]
- Input: [[input]]
- Certifications: [[certificates]]
- Dimensions: [[dimensions]]
Applications:
- Led strips
- Powering led spotlights
- Lighting led modules for signs
- Led displays
Our rating:
- Reliability
- Price
- Features
- [[vote1]]
- [[vote2]]
- [[vote3]]
Main Technical Specifications
| MODEL | APC-16-350 | APC-16-500 | APC-16-700 |
|---|---|---|---|
| Output Type | [[adjustment]] | ||
| Output Voltage | 12~48V | 10~33V | 9~24V |
| Output Current | 350mA | 500mA | 700mA |
| Power (Rated) | 16 Watts | ||
| Dimmable | NO | ||
| Max Efficiency | 84% | 84% | 83% |
| Input Voltage VAC |
90 ~ 264VAC / 127 ~ 370VDC |
||
| PFC | NO | ||
| Dimensions | [[dimensions]] | ||
Also see:
- The entire Mean Well APC and APV series
- All Mean Well LED power supplies
- All LED power supplies on PowerSupplyShop
Download the LED power supply catalogs in the attachments tab.
Data sheet
- Output Regulation Type
- Constant Current / CC
- Input Voltage VAC
- 90~264VAC
90~264VAC
127 ~ 370VDC
127 ~ 370VDC - Operating Temperature
- -30°C / +70°C
- Rating
- 453
- Power W
- 16
- PFC
- No
- IP Protection Grade
- IP42
- Warranty
- 2 Years
- Mechanical Mounting Format
- Closed Plastic Container
- Efficiency
- 84%
- Dimensions
- 77x40x29 mm
- Output Current mA
- 350
500
700 - Output Current A
- 0.5
0.7
0.35 - Input Connector
- Cable
- Output Connection
- Wired
- Isolation Class
- Class 2
- Certifications
- It appears that "CCC" does not provide enough context for an accurate translation. Could you please provide more information or a complete sentence?
This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details.
UL - Applications
- LED Power Supply
- Input Voltage VAC (Nominal)
- 110
220 - Product Family
- Could you please provide more context or clarify what you mean by "APC"? It could be an acronym or abbreviation with different meanings depending on the context.
- TK-CODE
- 45/7. [0.50.SI.]/LTT-1
179/5. [543.50.SI.]/LTT-1
