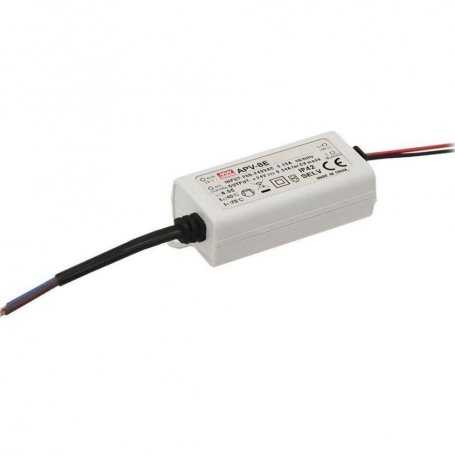

APV-8E MeanWell LED Power Supply 8W Constant Voltage CV IP42 Voltages 5V 12V 24V
zoom_out_map
chevron_left chevron_right

The product image may slightly differ as it is representative of the family and not the model.

Non disponibile - contattaci

APV-8E MeanWell LED Power Supply 8W Constant Voltage CV IP42 Voltages 5V 12V 24V

€5.53 APV-8E-5
€5.88 APV-8E-12
€5.53 APV-8E-24

€6.44 Tax excluded

€6.44 Tax excluded

block Non disponibile - contattaci

We will send you an email once the product becomes available. your email address will not be shared with anyone else.

Quantity Unit price Total price Buy
1 €5.88 €5.88
5 €5.76 €28.81
10 €5.64 €56.45
20 €5.53 €110.54
Description

End-Of-Life Model, replaced by APV-8

Power supply for Led Mean Well series APV-8E, power 8 Watt in output voltages 5V, 12V, 24V

The LED power supplies Mean Well from the APV-8E series are entry-level products, with a 2-year warranty, protected by a sturdy plastic structure and have an IP42 certification.

Features of the LED power supply APV-8E:

  • Economical and reliable
  • Plastic container
  • IP42 protection
  • Supplied pre-wired with power cables both incoming and outgoing.
  • Safe: equipped with protections from overvoltage and overload
  • Class 2 insulation (without ground)
  • Fully insulated plastic case
  • Quiet: No fans
  • 2 Year Warranty
  • Efficiency up to 78.5%
  • Constant Voltage / CV
  • Input: 180 ~ 264VAC, 254 ~ 370VDC
  • Certifications: UL, CE
  • Dimensions: 60x30x23.5mm

Applications of MeanWell 8W power supply:

  • Camera power supply
  • LED strips
  • LED spotlight power supply
  • LED module lighting for signs
  • LED displays

Our rating:

  • Reliability
  • Price
  • Features
    • [[vote1]]
    • [[vote2]]
    • [[vote3]]

Mechanical Features

Features

Main technical specifications

MODELAPV-8E-5APV-8E-12APV-8E-24
Output type Constant Voltage / CV
Output voltage 5V 12V 24V
Nominal output current 1.4A 0.67A 0.34A
Power (Nominal) 7W 8.04W 8.16W
Dimmable NO
Max Efficiency 74% 77.5% 78.5%
Input Voltage VAC 180 ~ 264VAC, 254 ~ 370VDC
PFC NO
Dimensions 60x30x23.5mm
For purchases and samples CONTACT US

Also see:

Download the LED power supply catalogs in the attachments tab.


Discover more information on

Data sheet
Mean Well
APV-8E-12
New
0402108705122
Output Regulation Type
Constant Voltage / CV
Output Voltage VDC
5
12
24
Input Voltage VAC
190~264VAC
190~264VAC
254 ~ 370VDC
254 ~ 370VDC
Operating Temperature
-30°C / +70°C
Rating
453
Power W
8
PFC
No
IP Protection Grade
IP42
Warranty
2 Years
Mechanical Mounting Format
Closed Plastic Container
Efficiency
78.5%
Dimensions
60x30x23.5mm
Output Current A
0.34
0.67
1.4
Input Connector
Cable
Output Connection
Wired
Isolation Class
Class 2
Certifications
This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details.
UL
Applications
LED Power Supply
Input Voltage VAC (Nominal)
110
220
Product Family
"APV" does not provide enough context for a direct translation. It could be an acronym or abbreviation that depends on the specific context in which it is used. Could you please provide more information or context?
