CVP036N-12V-P02  CVP036N-12V-P02 Alimentatore LED GlacialPower - CV - 36W / 12V   Glacial Power  Alimentatori LED
zoom_out_map
chevron_left chevron_right

The product image may slightly differ as it is representative of the family and not the model.

-30%Non disponibile - contattaci

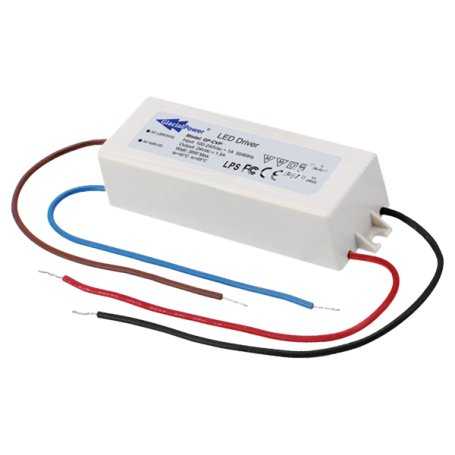

CVP036N-12V-P02 LED Power Supply GlacialPower - CV - 36W 12V

€10.09 Tax excluded

€10.09 Tax excluded

€14.42 -30%

block Non disponibile - contattaci

We will send you an email once the product becomes available. your email address will not be shared with anyone else.

Quantity Unit price Total price Buy
1 €10.09 €10.09
5 €14.13 €70.66
10 €13.84 €138.43
20 €13.55 €271.10
Description
  • LED Power Supply Glacialtech Inc.
  • Constant Voltage CV
  • Power 36W
  • Output Voltage: 12V
  • Output Current: 3A
  • Plastic Encapsulated
  • LED Power Supply Glacialtech Inc.
  • Constant Voltage CV
  • Power 36W
  • Output Voltage: 12V
  • Output Current: 3A
  • Plastic Encapsulated

This new Constant Voltage LED Power Supply has a rated power of 36W and is available in both 12V and 24V.

The CVP036N series has a universal AC input of 90~264V AC, a standby power consumption of less than 0.5 watt, a startup time of less than 0.5 seconds, and a minimum efficiency of 83% at 230VAC. The output power is regulated to protect the LEDs.

The CVP036N-xxV-P02 series is equipped with a sealed body that is resistant to both water and dust, IP67, making it suitable for both outdoor and indoor use.

The terminal block design of the CVP036N-xxV-T02 series is designed for easy installation.

Both versions include protections for overload (OCP - Over Current Protection or OVP - Over Voltage Protection), short circuit (SCP - Short Circuit Protection), and overheating (OTP - Over Temperature Protection) to ensure the safety of the power supply and the LEDs.

The new Constant Voltage CVP series includes the CVP012N, CVP036N, and CVP060N product lines, with output powers of 12W, 36W, and 60W. The CVP012N and CVP036N series are available with both IP67 and terminal block; the CVP060N series is only available with IP67.

The CVP012N and CVP036N series support output voltages of 12VDC and 24VDC. The CVP060N series supports output voltages of 5VDC, 12VDC, and 24VDC.

Data sheet
CVP036N-12V-P02
7438645977310
Output Regulation Type
Constant Voltage / CV
Output Voltage VDC
12
Input Voltage VAC
90~264VAC
90~264VAC
Power W
36
IP Protection Grade
IP67
Mechanical Mounting Format
Closed Plastic Container
Output Current mA
3000
Input Connector
Cable
Output Connection
Wired
Isolation Class
Class 2
Certifications
This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details.
Applications
LED Power Supply
Input Voltage VAC (Nominal)
110
220
Product Family
Sure, I'd be happy to help. Could you please provide the text you'd like translated from Italian to English?
LTT is an abbreviation or acronym that may not have a direct translation without context. It may stand for a company name, a tec
ON REQUEST
MKP
NO
TK-CODE
0/0. [0.0.NO.]/LTT-ON REQUEST
List Price
22.0
