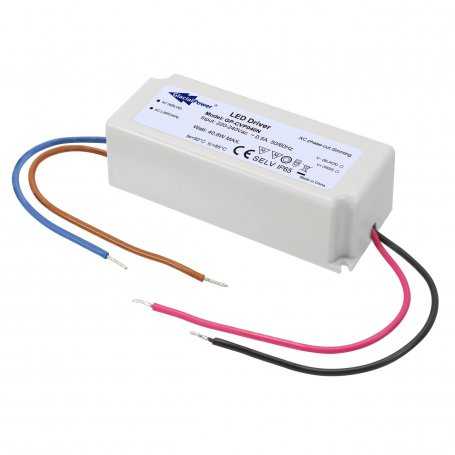

The product image may slightly differ as it is representative of the family and not the model.

CVP040N LED Power Supply Glacial Power 40W - Constant Voltage CV - dimmable

€17.85 12
€17.85 24

€17.85 Tax excluded

€17.85 Tax excluded

error_outline Product available with different options

We will send you an email once the product becomes available. your email address will not be shared with anyone else.

Quantity Unit price Total price Buy
1 €17.85 €17.85
5 €17.49 €87.47
10 €17.14 €171.36
20 €16.78 €335.58
Description

Led Power Supplies Glacial Power CVP040N series, power 40 Watt in 12V and 24V output voltages

The LED power supplies Glacial Power of the CVP040N series are professional products, with a 2-year warranty, protected by an IP65 certified plastic case, they are dimmable with TRIAC phase-cut technology.

CVP040N-12VH and CVP040N-24VH are perfect for powering low-medium (up to 40 Watt) constant voltage spotlights or LED ceiling lights.

Main features:

  • Economical and reliable
  • Phase-cut dimmable
  • IP65 plastic container
  • Safe: equipped with overvoltage, short-circuit and overload protections
  • [[class]] insulation (without ground)
  • Quiet: No fans
  • Warranty [[warranty]]
  • Efficiency up to [[efficiency]]
  • [[regulation]]
  • Input: [[input]]
  • Certifications: [[certificates]
  • Dimensions: [[dimensions]

Applications:

  • Camera power supply
  • LED strips
  • Spotlight LED power supply
  • LED module lighting for signs
  • LED displays

Our rating:

  • Reliability
  • Price
  • Features
  • [[vote1]]
  • [[vote2]]
  • [[vote3]]

Main technical specifications

MODELCVP040N-12VHCVP040N-24VH
Output type [[regulation]]
Output voltage 12V 24V
Nominal output current 3.4A 1.7A
Power (Nominal) 40 Watt
Dimmable TRIAC phase cut
Max Efficiency [[efficiency]]
Input voltage VAC [[input]]
PFC YES
Dimensions [[dimensions]]

See also:

Download the LED power supply catalogs in the attachments tab.

Data sheet
CVP040N-12VH
New
0 Items
7438645977839
Dimming LED
Triac
Output Regulation Type
Constant Voltage / CV
Output Voltage VDC
12
24
Input Voltage VAC
190~264VAC
190~264VAC
220~240VAC
220~240VAC
Rating
453
Power W
40
PFC
No
IP Protection Grade
IP65
Warranty
2 Years
Mechanical Mounting Format
Closed Plastic Container
Efficiency
82%
84%
Dimensions
107.5x43.5x32 mm
Output Current mA
1700
3400
Output Current A
1.7
3.4
Input Connector
Cable
Output Connection
Wired
Isolation Class
Class 2
Certifications
This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details.
Applications
LED Power Supply
Input Voltage VAC (Nominal)
220
Product Family
Sure, I'd be happy to help. Could you please provide the text you'd like translated from Italian to English?
TK-CODE
8/8. [0.0.NO.]/LTT-1
10/10. [0.0.NO.]/LTT-1
