CVP100P‐xxV‐P02 Alimentatore LED Glacial Power 100W - Tensione Costante CV
zoom_out_map
chevron_left chevron_right

The product image may slightly differ as it is representative of the family and not the model.

Non disponibile - contattaci

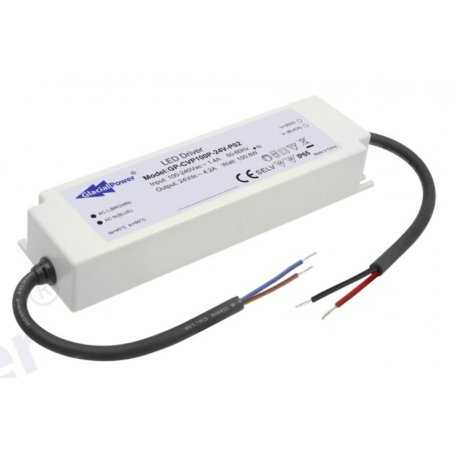

CVP100P-P02 LED Power Supply Glacial Power 100W - Constant Voltage CV

€0.00 GP‐CVP100P‐12V‐P02
€0.00 GP‐CVP100P‐24V‐P02
€0.00 GP‐CVP100P‐36V‐P02
€0.00 GP‐CVP100P‐48V‐P02

€0.00 Tax excluded

€0.00 Tax excluded

block Non disponibile - contattaci

We will send you an email once the product becomes available. your email address will not be shared with anyone else.

Quantity Unit price Total price Buy
1 €0.00 €0.00
5 €0.00 €0.00
10 €0.00 €0.00
20 €0.00 €0.00
Description

Available models: CVP100P‐12V‐P02, CVP100P‐24V‐P02, CVP100P‐36V‐P02, CVP100P‐48V‐P02

GlacialPower, one of the leading companies in the LED lighting sector, has just released the newGP-CVP100P, constant voltage driver. At full load, the series offersActive PFC at 0.98 - 230VAC, in addition to alow consumptionwithout load (under 0.5W) and a very fast set-up time (0.5 seconds at 230VAC).

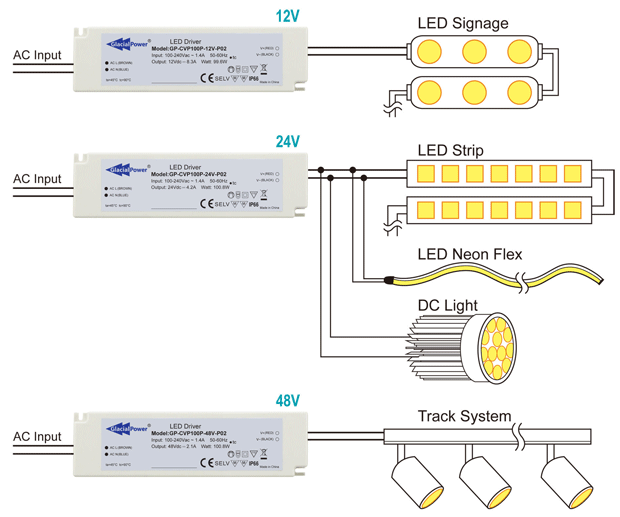

The GP-CVP100P series is available in voltages at12V, 24V, 36V and 48V, proving to be perfect forlow voltage applications, such as LED signs, light boxes, LED strips, DC input lights and 48V lights.

The entire series supports universal AC input90-264VACAnd includes protectionsOCPSCPOTPAndOVP, always ensuring safe operation.

With the certificationIP66, the devices are completely isolated and protected from dust and water, allowing them to operate at temperatures between the-20°C and 50°C, thus making it perfect for any type of environment. The efficiency of the models reaches up to90%, in accordance with the ErP (EU) 2019/2020, effectively reducing the environmental impact.

Main features:

  • Input rangeAC 90-264VAC
  • Mode toconstant tension
  • PFC active
  • ProtectionsOVP, OCP, SCP, and OTP
  • Efficiency up to90%
  • No-load consumptionW at 230VAC.
  • Set up timeAt 230VAC
  • In accordance withErP (EU) 2019/2020
  • IP66
  • Perfect for LED strips, signs, flex neon and 48V track systems.
  • Resistance to peaks of300VACFor input5 seconds.

Applications:

  • LED Signs
  • LED boxes
  • LED Neon
  • LED Strips

Our vote:

  • Reliability
  • Price
  • Features
  • [[voto1]There is no text provided to translate. Please provide the text you want translated.
  • [[voto2]There is no text provided to translate. Please provide the text you want translated.
  • [[voto3]There is no text provided to translate. Please provide the text you want translated.

Main technical specifications

MODEL CVP100P-12V-P02 CVP100P-24V-P02 This appears to be a model number or product code and does not require translation. CVP100P-48V-P02
Output voltage 12V 24V 36V 48V
Nominal Output Current 8.3A 4.2A 2.8A 2.1A
Power (Nominal) 99.6W 100.8W 100.8W 100.8W
Max Efficiency 88% 90% 90% 90%
PFC YES
Working temperature -4°~122°F
Protections OVP, OCP, SCP, OTP
Dimensions 188 x 53.6 x 30mm





See also:

Download the LED power supply catalogs in the attachments tab.

Attachments
Data sheet
GP‐CVP100P‐12V‐P02
New
Output Regulation Type
Constant Voltage / CV
Output Voltage VDC
12
24
36
48
Input Voltage VAC
90 ~ 264VAC
90~264VAC
Rating
453
Power W
100
PFC
Yes
Mechanical Mounting Format
Closed Plastic Container
Efficiency
88%
90%
Dimensions
188 x 53.6 x 30mm
Output Current mA
2100
2800
4200
8300
Output Current A
2.1
2.8
4.2
8.3
Input Connector
Cable
Output Connection
Wired
Certifications
This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details.
Applications
LED Power Supply
Input Voltage VAC (Nominal)
220
Product Family
Sure, I'd be happy to help. Could you please provide the text you'd like translated from Italian to English?
