DIMxx-100 ACTEC LED Power Supply 100W Constant Voltage CV 12V - 24V
zoom_out_map
chevron_left chevron_right

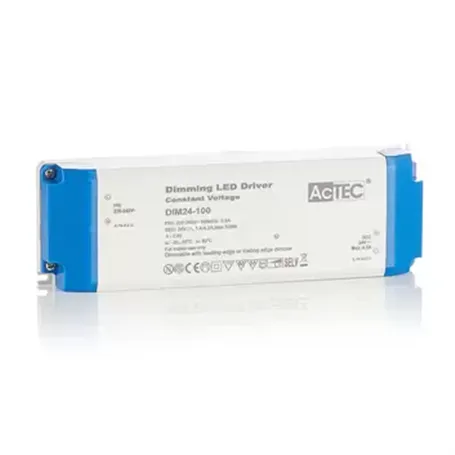

The product image may slightly differ as it is representative of the family and not the model.

New

DIMxx-100 ACTEC LED Power Supply 100W Constant Voltage CV 12V - 24V

€32.97 DIM12-100
€32.97 DIM24-100

€32.97 Tax excluded

€32.97 Tax excluded

error_outline Product available with different options

We will send you an email once the product becomes available. your email address will not be shared with anyone else.

Quantity Unit price Total price Buy
1 €32.97 €32.97
5 €32.31 €161.55
10 €31.65 €316.51
20 €30.99 €619.84
Description

Available models: DIM12-100, DIM24-100

The series of 100W TRIAC LED Drivers from ACTEC is the ideal solution to ensure flicker-free dimmable lighting, perfect for environments that require precise and reliable light control.

Features:

  • TRIAC dimmable constant voltage driver
  • Flicker-free analog operation
  • Compatible with leading edge or trailing edge phase-cut dimmers
  • Smooth dimming with most dimmers
  • Dimming range from 1% to 100%
  • Push wire connections for easy and secure installation
  • Integrated protections against open circuit, short circuit, overload, and overheating
  • SELV certification, ensuring optimal electrical safety
  • Suitable for Class I and II lighting fixtures
  • Protection class II for additional safety

Applications:

  • LED lighting

Our rating:

  • Reliability
  • Price
  • Features
    • [[rating1]]
    • [[rating2]]
    • [[rating3]]



Main Technical Specifications

MODEL DIM12-100 DIM24-100
Input voltage 220V-240V
Output voltage 12V 24V
Nominal Output Current 2.7 - 8.3A 1.4 - 4.2A
Power (Nominal) 100W
Efficiency 86% 88%
Operating Temperature -20 ~ +50 °C
Dimensions 210 x 67 x 34 mm
For purchases and samples CONTACT US

See also:

Download the LED driver catalogues in the attachments section.

Data sheet
ACTEC
DIM12-100
New
0 Items
Dimming LED
Triac
Output Regulation Type
Constant Voltage / CV
Output Voltage VDC
12
24
Operating Temperature
-4°F / +122°F
Rating
453
Power W
100
IP Protection Grade
IP20
Mechanical Mounting Format
Closed Plastic Container
Efficiency
86%
88%
Dimensions
184x61x32 mm
Output Current mA
4160
8300
Output Current A
4.16
8.3
Input Connector
Cable
Output Connection
Wired
Certifications
It seems like "TUV" is not a word in Italian, and it does not provide any context to translate. Could you please provide more context or check if there might be a typo?
Sure, but could you please provide the full text that you would like translated?
This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details.
Applications
LED Power Supply
