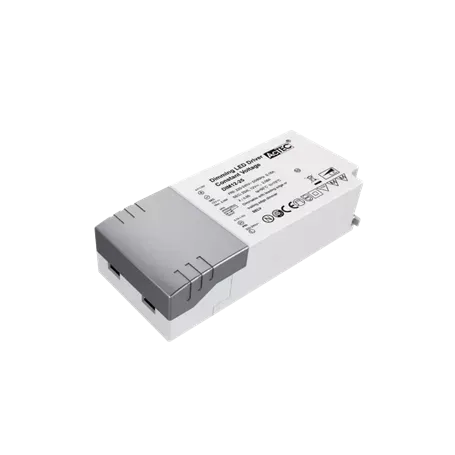

The product image may slightly differ as it is representative of the family and not the model.
DIMxx-25 ACTEC LED Power Supply 25W Constant Voltage CV 12V - 24V
Description
Available models: DIM12-25, DIM24-25
The series of 25W TRIAC LED Drivers by ACTEC is the ideal solution to ensure flicker-free dimmable lighting, perfect for environments that require precise and reliable light control.
Features:
- Constant voltage TRIAC dimmable driver
- Analog operation without flickering
- Compatible with leading edge or trailing edge phase-cut dimmers
- Smooth dimming with most dimmers
- Dimmer adjustment range from 1% to 100%
- Push wire connections for simple and secure installation
- Integrated protections against open circuit, short circuit, overload, and overheating
- SELV certification, ensuring optimal electrical safety
- Suitable for Class I and II lighting fixtures
- Class II protection for additional safety
Applications:
- LED lighting
Our rating:
Main technical specifications
| MODEL | DIM12-25 | DIM24-25 |
|---|---|---|
| Input voltage | 220V-240V | |
| Output voltage | 12V | 24V |
| Nominal output current | 0.8 - 2.08A | 0.4 - 1.04A |
| Power (Nominal) | 25W | |
| Efficiency | 84% | 84% |
| Operating temperature | -20 ~ +50 °C | |
| Dimensions | 128 x 52 x 30 mm | |
| For purchases and samples | CONTACT US | |
See also:
Download the LED power supply catalogs in the attachments tab.
Data sheet
- Dimming LED
- Triac
- Output Regulation Type
- Constant Voltage / CV
- Output Voltage VDC
- 12
24 - Operating Temperature
- -4°F / +122°F
- Rating
- 453
- Power W
- 25
- IP Protection Grade
- IP20
- Mechanical Mounting Format
- Closed Plastic Container
- Efficiency
- 84%
- Dimensions
- 184x61x32 mm
- Output Current mA
- 1040
2080 - Output Current A
- 1.04
2.08 - Input Connector
- Cable
- Output Connection
- Wired
- Certifications
- It seems like "TUV" is not a word in Italian, and it does not provide any context to translate. Could you please provide more context or check if there might be a typo?
Sure, but could you please provide the full text that you would like translated?
This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details. - Applications
- LED Power Supply
