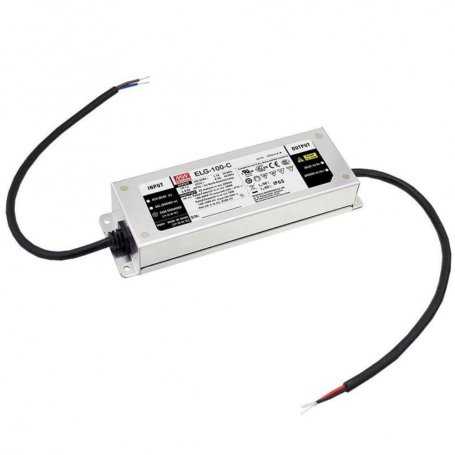

The product image may slightly differ as it is representative of the family and not the model.
On sale!
ELG-100-C Meanwell LED Power Supply 100W Constant Current DC Currents 350mA 500mA 700mA 1050mA 1400mA
Description
Power supplies for Led Mean Well series ELG-100-C, power 100Watt, output currents 350mA, 500mA, 700mA, 1050mA, 1400mA
LED power supplies Mean Well of the ELG-100-C seriesThese are entry-level products, with a 5-year warranty, protected by a sturdy metal frame.
The seriesELG-100-C It has a constant current and high voltage output mode, it has an input voltage range from 100-305 VAC and offers models with nominal currents ranging from 350 mA to 1400 mA.
The design of the metal case and the IP67 / IP65 protection level allows this series to adapt to both indoor and outdoor applications.
The seriesELG-100-CIt is equipped with various function options, such as dimming methodologies, in order to provide optimal design flexibility for the LED lighting system.
Features:
- MeanWell LED Power Supply
- Output in Constant Current CC mode
- Design of the metal case with functional grounding
- IP67 / IP65 protection degree for indoor or outdoor installations
- Typical duration>50000 hours
- Active PFC function built-in
- No load / Energy consumption in standby
- Function options: adjustable output via potentiometer; 3 in 1 dimming (dim-to-off); Timer dimming
- Protection from: short circuit, overvoltage and overheating
- Dimensions: 199x63x35.5 mm
- Warranty: 5 years
Applications:
- LED street lighting
- LED Lighting
Our vote:
- Reliability
- Price
- Characteristics
-
- [[voto1]You didn't provide any text to translate. Please try again.
- [[voto2]You didn't provide any text to translate. Please try again.
- [[voto3]You didn't provide any text to translate. Please try again.
Main technical specifications
| MODEL | ELG-100-C350 | ELG-100-C350 | ELG-100-C700 | ELG-100-C1050 | ELG-100-C1400 |
|---|---|---|---|---|---|
| Type of exit | Constant Current / CC | ||||
| Nominal Output Current | 350mA | 500mA | 700mA | 1050mA | 1400mA |
| Power (Nominal) | 100.1W | 100W | 100.1W | 99.75W | 100.8W |
| Constant voltage output range | 143 ~ 286V | 100 ~ 200V | 71 ~ 143V | 48 ~ 95V | 35 ~ 72V |
| Efficiency | 92% | 91% | 91% | 90% | 90% |
| Input voltage range | 100 ~ 305VAC | ||||
| Vacuum Type | I Stare IP67 | ||||
| Type A | I am adjustable through integrated potentiometerIP65 | ||||
| Type B | 3 in 1 dimming function (1-10 VDC signal and resistance, 10V PWM)IP67 | ||||
| Type AB | I am adjustable through integrated potentiometer and 3 in 1 dimming function (1-10VDC signal and resistance, 10V PWM)IP65 | ||||
| Type DA | DALI control systemIP67 | ||||
| Right Type | Smart timer adjustment function built-in on requestIP67 | ||||
| Type D2 | Integrated smart timer adjustment function and programmable function.IP67 | ||||
| Dimmable | YES | ||||
| Working temperature | -40 ~+90 °C | ||||
| PFC | YES | ||||
| Dimensions | 199x63x35.5 mm | ||||
| Protection Degree | IP67 / IP65 | ||||
| Certifications | CE, CB, EAC, CCC | ||||
| For purchases and sampling | CONTACT US | ||||
See also:
Download the LED power supply catalogs in the attachments tab.
Data sheet
- Dimming LED
- 0/10V
Dali
PWM
Potentiometer
Resistor (Ohm)
Timer Dimming - Led Dimming (interface)
- 0/10V
Dali
PWM
Potentiometer - Output Regulation Type
- Constant Current / CC
- Input Voltage VAC
- 100~305VAC
100~305VAC - Operating Temperature
- -40°C / +90°C
- Rating
- 453
- Power W
- 100
- PFC
- Yes
- IP Protection Grade
- IP65
IP67 - Warranty
- 5 Years
- Mechanical Mounting Format
- Closed Metal Container
- Efficiency
- 92%
- Dimensions
- 199x63x35.5 mm
- Output Current mA
- 350
500
700
1050
1400 - Output Current A
- 0.5
0.7
0.35
1.05
1.4 - Input Connector
- Cable
- Output Connection
- Wired
- Certifications
- It appears that "CCC" does not provide enough context for an accurate translation. Could you please provide more information or a complete sentence?
Sure, but could you please provide the full text that you would like translated?
This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details. - Applications
- LED Power Supply
- Product Family
- Could you please provide more context or clarify what "ELG" refers to? It might help me give you a more accurate translation or information.
