ELG-200 Meanwell LED Power Supply 200W Constant Voltage CV Constant Current DC
zoom_out_map
chevron_left chevron_right

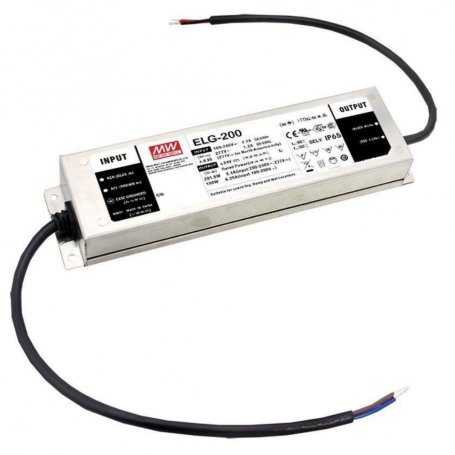

The product image may slightly differ as it is representative of the family and not the model.

ELG-200 Meanwell LED Power Supply 200W Constant Voltage CV Constant Current DC

€57.47 ELG-200-54
€60.41 ELG-200-48
€57.47 ELG-200-42
€57.47 ELG-200-36
€57.47 ELG-200-24
€57.47 ELG-200-12
€60.41 ELG-200-24A
€57.47 ELG-200-36A
€57.47 ELG-200-42A
€48.37 ELG-200-48A
€59.92 ELG-200-12B
€57.47 This appears to be a product code or model number, so it would remain the same in English: ELG-200-54A.
€63.00 ELG-200-24B
€59.92 ELG-200-36B
€59.92 ELG-200-42B
€59.92 ELG-200-48B
€59.92 ELG-200-54B
€65.73 ELG-200-12D2
€69.09 ELG-200-24D2
€65.73 ELG-200-36D2
€65.73 ELG-200-42D2
€65.73 ELG-200-48D2
€65.73 ELG-200-54D2
€68.04 ELG-200-12DA
€68.04 ELG-200-24DA
€64.75 ELG-200-36DA
€64.75 ELG-200-42DA
€64.75 ELG-200-48DA
€64.75 ELG-200-54DA
€49.00 ELG-200-12A
€60.41 ELG-200-54A-3Y
€47.81 ELG-200-24-3Y
€49.14 ELG-200-24A-3Y
€50.82 ELG-200-24B-3Y
€51.03 ELG-200-12A-3Y
€47.88 ELG-200-12B-3Y
€51.73 ELG-200-24DA-3Y
€93.52 ELG-200-48AB
€70.00 ELG-200-12DA-3Y
€49.28 The text "ELG-200-48B-3Y" is a product model number or code and does not require translation. It remains the same in all languag
€56.63 ELG-200-48DA-3Y

€57.47 Tax excluded

€57.47 Tax excluded

error_outline Product available with different options

We will send you an email once the product becomes available. your email address will not be shared with anyone else.

Quantity Unit price Total price Buy
1 €57.47 €57.47
5 €56.32 €281.60
10 €55.17 €551.71
20 €54.02 €1,080.44
Description

Power supplies for Led Mean Well series ELG-200 Dimmable, power 200Watt, output currents 3.72A, 4.16A, 4.76A, 5.55A, 8.4A, 16A. Output voltages 12V, 24V, 36V, 42V, 48V,54V.

The seriesELG-200It has a dual mode of constant current and constant voltage output, has an input voltage range of 100-305 VAC and offers models with voltages ranging from 12V to 54V.
The design of the metal case and the IP67 / IP65 protection level allows this series to adapt to both indoor and outdoor applications.

The seriesELG-200It is equipped with various function options, such as dimming methodologies, in order to provide optimal design flexibility for the LED lighting system.

Features:

  • MeanWell LED Power Supply
  • Output in Constant Voltage and Constant Current DC mode
  • Design of the metal case with functional grounding
  • IP67 / IP65 protection degree for indoor or outdoor installations
  • Typical duration>50000 hours
  • Active PFC function built-in
  • No load / Energy consumption in standby
  • Function options: adjustable output via potentiometer; 3 in 1 dimming (dim-to-off); Timer dimming; DALI
  • Protection from: short circuit, overvoltage, overcurrent and overheating
  • Dimensions: 244x71x37.5mm
  • Warranty: 5 years

Applications:

  • LED street lighting
  • LED Lighting

Our vote:

  • Reliability
  • Price
  • Characteristics
    • [[voto1]You didn't provide any text to translate. Please try again.
    • [[voto2]You didn't provide any text to translate. Please try again.
    • [[voto3]You didn't provide any text to translate. Please try again.

Main technical specifications

MODEL ELG-200-12 ELG-200-24 ELG-200-36 The text "ELG-200-42" doesn't need translation as it appears to be a model number or code, and would remain the same in English. ELG-200-48 ELG-200-54
Type of exit Constant Voltage/CV Constant Current / CC
Output voltage 12V 24V 36V 42V 48V 54V
Nominal Output Current 16A 8.4A 5.55A 4.76A 4.16A 3.72A
Power 192W 201.6W 199.8W 199.8W 199.68W 200.88W
Efficiency 90% 92% 92% 92.5% 93% 93%
Input voltage range 100 ~ 305VAC
Vacuum Type I Stare IP67
Type A I am adjustable through integrated potentiometerIP65
Type B 3 in 1 dimming function (1-10 VDC signal and resistance, 10V PWM)IP67
Type DA DALI control systemIP67
Right Type Smart timer adjustment function built in upon requestIP67
Type D2 Built-in smart timer adjustment function and programmable functionIP67
Dimmable YES
Working temperature -40 ~ +90 °C
PFC YES
Dimensions 244x71x37.5mm
Protection Degree IP67 / IP65
Certifications CE, CB, EAC, CCC
For purchases and sampling CONTACT US

See also:

Download the LED power supply catalogs in the attachments tab.


Discover more information about

Data sheet
Mean Well
ELG-200-24
New
0 Items
655994238795
Dimming LED
0/10V
Dali
PWM
Potentiometer
Resistor (Ohm)
Timer Dimming
Led Dimming (interface)
0/10V
Dali
PWM
Potentiometer
Output Regulation Type
Constant Current / CC
Constant Voltage / CV
Output Voltage VDC
12
24
36
42
48
54
Input Voltage VAC
100~305VAC
100~305VAC
Operating Temperature
-40°C / +90°C
Rating
453
Power W
200
PFC
Yes
IP Protection Grade
IP65
IP67
Warranty
5 Years
Mechanical Mounting Format
Closed Metal Container
Efficiency
93%
Dimensions
244x71x37.5mm
Output Current mA
3720
4160
4760
5550
8400
16000
Output Current A
3.72
4.16
4.76
5.55
8.4
16
Input Connector
Cable
Output Connection
Wired
Certifications
It appears that "CCC" does not provide enough context for an accurate translation. Could you please provide more information or a complete sentence?
Sure, but could you please provide the full text that you would like translated?
This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details.
Applications
LED Power Supply
Product Family
Could you please provide more context or clarify what "ELG" refers to? It might help me give you a more accurate translation or information.
