FTPC150V-S POS Power LED Power Supply 150W Constant Voltage CV Voltages 12V 24V 48V
zoom_out_map
chevron_left chevron_right

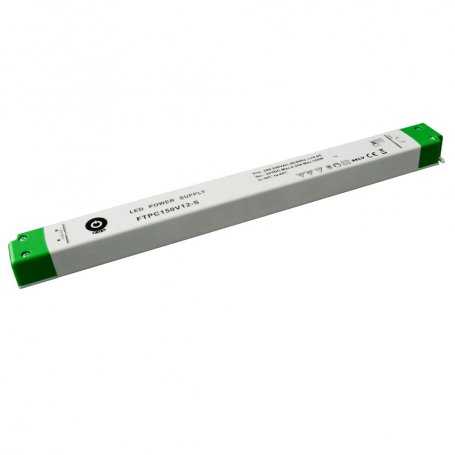

The product image may slightly differ as it is representative of the family and not the model.

Non disponibile - contattaci

FTPC150V-S POS Power LED Power Supply 150W Constant Voltage CV Voltages 12V 24V 48V

€44.80 12
€42.77 24
€0.00 48

€44.80 Tax excluded

€44.80 Tax excluded

block Non disponibile - contattaci

We will send you an email once the product becomes available. your email address will not be shared with anyone else.

Quantity Unit price Total price Buy
1 €44.80 €44.80
5 €43.90 €219.52
10 €43.01 €430.08
20 €42.11 €842.24
Description

Power supplies for Led POS Power FTPC150V-S series, 150Watt power, output voltages 12V, 24V, 48V

The LED power supplies POS Power of the FTPC150V-S series are entry-level products, with a 3-year warranty. Their compact plastic structure makes them suitable even in applications where space is a problem.

The FTPC150V-S series has a constant voltage output mode and high voltage, it has an input voltage range from 180 ~ 264VAC and offers models with output voltages between 12V, 24V, and 48V.

The FTPC series is characterized by an ultra-low profile design, which allows it to be installed in tight spaces.

Features:

  • LED Power Supply POS Power
  • Constant Voltage CV Output Mode
  • AC Input
  • Protections from: short circuit, overload, overtemperature, overvoltage
  • Free air convection cooling
  • Working temperature: -20°C to 45°C
  • 3-year warranty
  • Dimensions: 323x30x22mm

Applications:

  • LED street lighting
  • LED lighting

Our rating:

  • Reliability
  • Price
  • Features
    • [[voto1]
    • [[voto2]
    • [[voto3]

Mechanical Features

Caratteristiche-Serie-FTPC150V-S -PosPower

Main technical specifications

MODELFTPC150V12-SFTPC150V24-SFTPC150V48-S
Output type Constant Voltage / CV
Output voltage 12V 24V 48V
Nominal output current 11A 6.25A 3.125A
Efficiency 90% 91% 92%
Power 150W
Input voltage range 180 ~ 264VAC
Dimmable NO
Working temperature -20°C to 45°C
PFC NO
Dimensions 323x30x22mm
Certifications CE
For purchases and samples CONTACT US

See also:

Download the LED power supply catalogs in the attachments tab.


Discover more information on

Data sheet
POS Power
FTPC150V12-S
New
5902135122303
Output Regulation Type
Constant Voltage / CV
Output Voltage VDC
12
24
48
Input Voltage VAC
180~264VAC
200~240VAC
Operating Temperature
-4°F / 113°F
Rating
453
Power W
150
PFC
No
Output Voltage Nr.
1
IP Protection Grade
IP20
Warranty
3 Years
Mechanical Mounting Format
Closed Plastic Container
Efficiency
92%
Dimensions
323x30x22mm
Output Current mA
3125
6250
11000
Output Current A
3.125
6.25
11
Input Connector
At Speed
Output Connection
At Speed
Certifications
This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details.
Applications
LED Power Supply
Product Family
FTPC
