FTPC75V-D  FTPC75V-D Alimentatore LED POS Power 75W - Tensione Costante CV - Dimmerabile  POS Power  Alimentatori LED
zoom_out_map
chevron_left chevron_right

The product image may slightly differ as it is representative of the family and not the model.

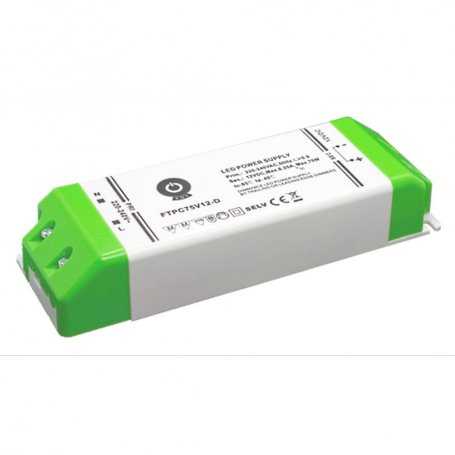

FTPC75V-D LED Power Supply POS Power 75W - Constant Voltage CV - Dimmable

€43.26 12
€43.26 24

€43.26 Tax excluded

€43.26 Tax excluded

error_outline Product available with different options

We will send you an email once the product becomes available. your email address will not be shared with anyone else.

Quantity Unit price Total price Buy
1 €43.26 €43.26
5 €42.39 €211.97
10 €41.53 €415.30
20 €40.66 €813.29
Description

Dimmable Power Supplies for Led POS Power series FTPC75V-D, power 75 Watt in 12V and 24V output voltages

The LED power supplies POS Power of the FTPC series are entry-level products, with a 5-year warranty, dimmable with Triac / phase-cut technology.

Main Features:

  • Economical and reliable
  • Plastic container
  • Safe: equipped with protections from overvoltage, short circuit, and overload
  • [[class]] insulation (without earth)
  • Can be installed directly on wood
  • Quiet: Absence of fans
  • Warranty [[warranty]]
  • Efficiency up to [[efficiency]
  • [[adjustment]]
  • Input: [[input]]
  • Certifications: [[certificates]]
  • Dimensions: [[dimensions]]

Applications:

  • Power supply for cameras
  • LED strips
  • Power supply for LED spotlights
  • Lighting LED modules for signs
  • LED displays

Our Rating:

  • Reliability
  • Price
  • Features
  • [[vote1]]
  • [[vote2]]
  • [[vote3]]

Main Technical Specifications

MODELFTPC75V12-DFTPC75V24-D
Output Type [[adjustment]]
Output Voltage  12V 24V
Nominal Output Current 6.25A 3.125A
Power (Nominal) 75 Watt
Dimmable YES - Phase Cut
Max Efficiency [[efficiency]]
Input Voltage VAC [[input]]
PFC YES
Dimensions [[dimensions]]

See also:

       Download the LED power supply catalogs in the attachments tab.

Data sheet
POS Power
FTPC75V12-D
New
0 Items
5902135126080
Dimming LED
Triac
Output Regulation Type
Constant Voltage / CV
Output Voltage VDC
12
24
Input Voltage VAC
220~240VAC
220~240VAC
Operating Temperature
-4°F / 113°F
Rating
453
Power W
75
PFC
Yes
IP Protection Grade
IP20
Warranty
5 Years
Mechanical Mounting Format
Closed Plastic Container
Efficiency
85%
Dimensions
170.4X56.5X31 mm
Output Current mA
3125
6250
Output Current A
3.125
6.25
Input Connector
At Speed
Output Connection
At Speed
Isolation Class
Class 2
Certifications
This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details.
Applications
LED Power Supply
Input Voltage VAC (Nominal)
220
Product Family
FTPC
TK-CODE
128/3. [0.0.NO.500]/LTT-1
130/5. [0.0.NO.500]/LTT-1
