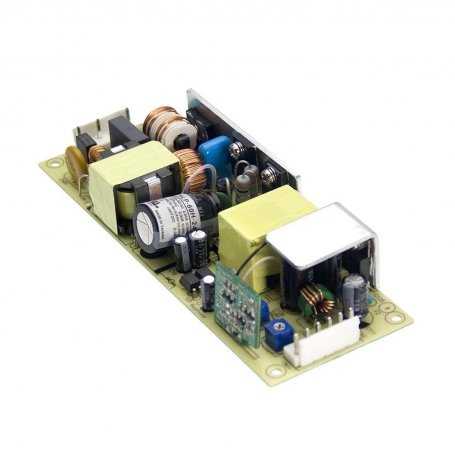

The product image may slightly differ as it is representative of the family and not the model.

Non disponibile - contattaci

HLP-40H-48 Meanwell - LED Power Supply CC - 40W 840mA - Dimmable

€37.03 Tax excluded

€37.03 Tax excluded

block Non disponibile - contattaci

We will send you an email once the product becomes available. your email address will not be shared with anyone else.

Quantity Unit price Total price Buy
1 €37.03 €37.03
5 €36.29 €181.45
10 €35.55 €355.49
20 €34.81 €696.16
Description

End-Of-Life Model, replaced by PLP-60

  • MeanWell LED Power Supply
  • Constant Current DC
  • Input: 90~305VAC
  • Power: 40W
  • DC Output Voltage: 28.8~48Vdc
  • Output Current: 840mA
  • LED Power Supply MeanWell
  • Constant Current DC
  • Input: 90~305VAC
  • Power: 40W
  • DC Output Voltage: 28.8~48Vdc
  • Output Current: 840mA
  • Active PFC
  • Protection:
    Short Circuit
    Overload
    Overvoltage
    Overheating
  • Class II
  • Adjustable Output Current
  • Dimming: PWM - 1/10Vdc - Resistance
  • Designed for LED Lighting
  • Open Frame
  • Warranty: 3 years
Data sheet
Mean Well
HLP-40H-48
New
7438645959910
Dimming LED
1/10V
PWM
Resistor (Ohm)
Output Regulation Type
Constant Current / CC
Output Voltage VDC
48
Input Voltage VAC
90~295VAC
90~295VAC
Operating Temperature
-40°C / +70°C
Power W
40
PFC
Yes
Mechanical Mounting Format
Open Frame
Efficiency
89.5%
Dimensions
147 x 53 x 27 mm
Output Current mA
840
Output Current A
0.84
Certifications
This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details.
Applications
LED Power Supply
Input Voltage VAC (Nominal)
110
220
Product Family
Sure, I'd be happy to help! Could you please provide the text in Italian that you would like me to translate?
LTT is an abbreviation or acronym that may not have a direct translation without context. It may stand for a company name, a tec
ON REQUEST
MKP
YES
TK-CODE
0/0. [0.0.NO.]/LTT-ON REQUEST
List Price
40.1
